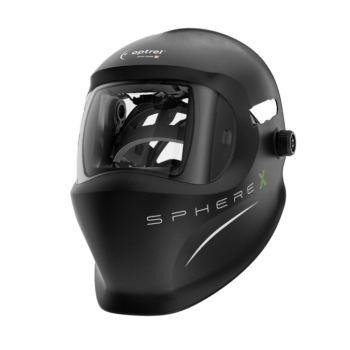

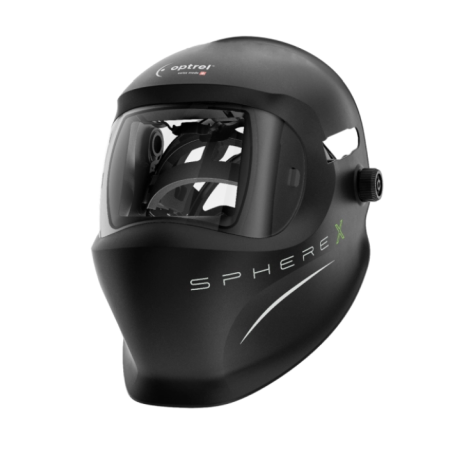

sphereX shell - black: without optoelectronic filter

Optrel automatic welding helmet, black color
Light shade 2.5
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

Variable shade adjustable from 8 to 13 depending on your eye sensitivity - Adjustment inside the mask.
Optical class: 1/1/1/1
Viewing area 97 x 60 mm
Grinding mode function DIN 3 - adjustment button on the outside of the helmet
Number of sensors: 4
Dark / light switching time: 0.1-1.0 second - fully adjustable
Weight 560 g
Possibility of adaptable magnifying lens
Minimum trigger amperage: less than 2 A in DC and AC/DC
Headband type: 4-axis pivot
Battery type: 2 x CR2050 + solar cell
True colour rendering device

replacement lenses:

internal: KP2931-1

external: KP2898-1

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply: 2 x 3V batteries CR2032.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
EN 379 classification of this model: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Included:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 Replacement outer protective cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on the website www.optrel.com.

High-performance automatic welding helmet. Sentinel A60 was designed with enhanced vision in mind.
Viewing area 40% larger than A50 (118 x 71 mm) for a wider view of your work.
Its new ADF offers excellent 1/1/1/1 EN optics from all angles
Ultra-clear True-Color lenses to reduce eye fatigue
Shade range from 3/5 to 13 adjustable in half-unit digital increments to optimise vision
4 overactive arc detection sensors for automatic brightness recognition in any work environment
Bright two-colour LED display for easy viewing in low-light conditions
New graphics to adjust sensitivity and delay time
Buttons carefully spaced apart from each other, easy to use even with gloves
ADF with nine programmable memory slots to save and quickly access welding profiles
Esab Sentinel A60 features an external grinding mode button for easy activation
New shade lock function to bypass the ADF and keep the helmet in its darkest state.
2 replaceable CR2450 lithium batteries with solar support
Internal warning indicators for grinding mode, low battery and ADF bypass lock
The signature flip-front design of the Sentinel A60 with infinite adjustment distributes weight
around the head.
Switching time (light to dark): 0.04 ms; switching time (dark to light): 0.1–0.9 s, adjustable

Approvals: CE: EN175, EN379, EN166; ANSI Z87.1; CSA Z94.3; AS/NZS 1337.1, 1338.1; TP TC 019/2011; ISO 16321-1/2

3-year warranty (battery excluded)

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRY BAG.

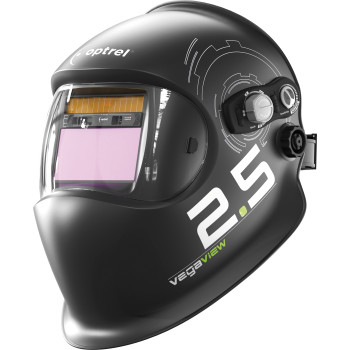

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

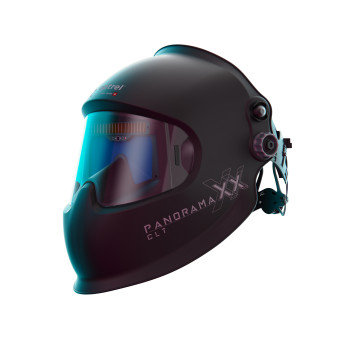

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

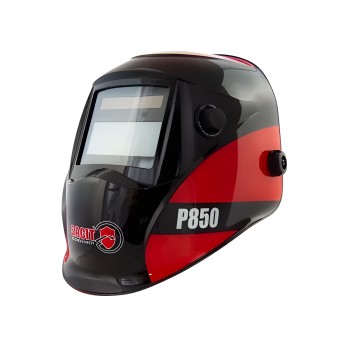

SACTI P850 welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), grinding, and flame welding.

Automatically switches to a dark shade in 1/3,000 of a second.
It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Operates with a CR2032 battery (included) + solar cell.

Intensity adjustment via external button.

All Sacit® auto-darkening masks are powered by batteries and integrated solar cells, ensuring reliable operation even in non-uniform or dark environments. The use of batteries also allows for faster darkening compared to masks powered solely by solar cells.

Viewing area: 39 x 96 mm
Filter dimensions: 110 x 90 mm
Adjustable sensitivity. Protection level DIN 4/9:13 during welding operations.
Number of sensors: 2.
Adjustable headband
Optical class: 1/1/1/2
Weight: 485 g

Download the brochure

Welding helmet with powered air-purifying respiratory protection Protects eyes from IR/UV and the operator's respiratory tract Optimum field of view 75x112mm True-Color Technology - Optical class 1/1/1/1 Lithium battery life of approximately 8 hours - Charging time 1h 3 adjustable airflow rates to suit requirements (from 170 l/min to 230 l/min) 4 solar sensors for very high sensitivity and ultra-fast reaction time (0.08 ms) Fixed light shade: DIN 3 Variable dark shade DIN 9/12-13/15 Digital controls Grinding mode The filter is rated TH3 and retains 99.996% of welding particles Standards EN 166 / EN 175 / EN 379 / EN 12941 Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter Weight 5 kg

Automatic welding helmet
Fixed light shade: DIN 4
Variable dark shade: DIN 9-13
Viewing field: 930x430 mm
Solar power + Lithium battery (CR2032)
Grinding function
Adjustable headband
Automatically switches from light to dark shade upon arc strike: under 1/10,000 seconds
Return to light state adjustable from 0.15S-0.8S
Dimensions: 57x50x52 cm
Weight: 430 grams

Optical classification standard:
Compliant with standards EN 175B / EN 166 / EN 379

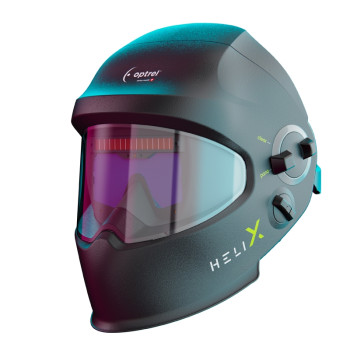

This Optrel Helix Quattro welding helmet with flip-up lens is suitable for welding in demanding conditions
Amperage adjustment range: up to 500 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-14
Clear shade: 3 for grinding work.
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headband, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

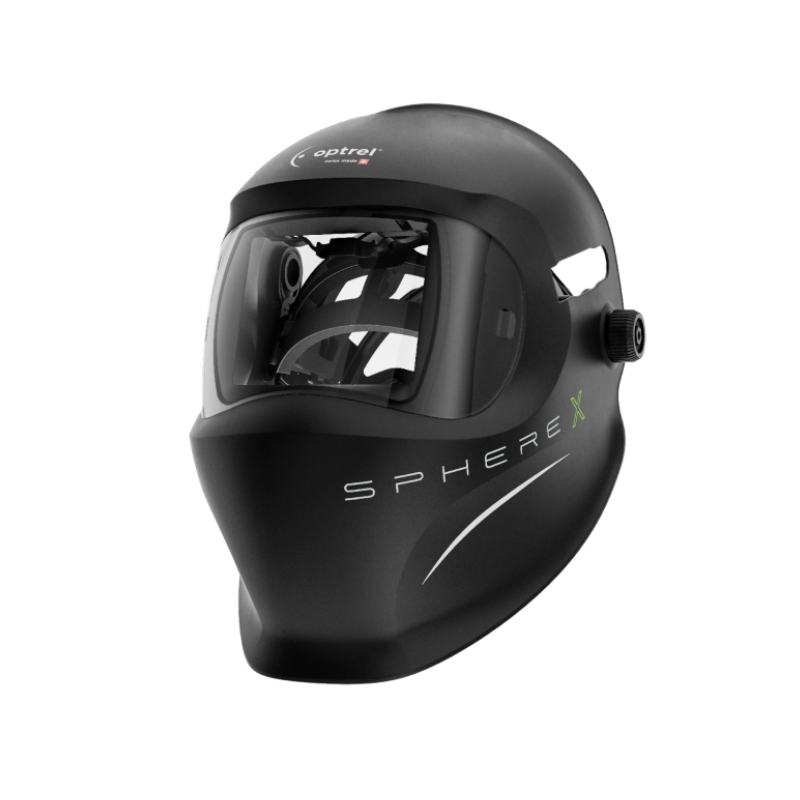

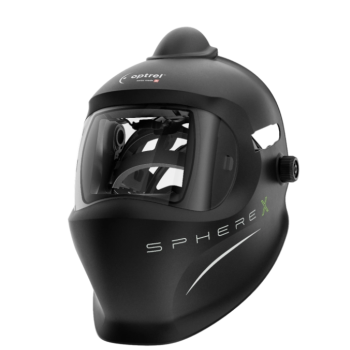

Black SphereX fresh air welding helmet shell (without anti-glare cassette)

Automatic Vision 11 TC welding helmet True-Color technology Matte black colour, easy to clean Fixed light shade: DIN 3 Fixed dark shade: DIN 11 Wide field of view: 90x35mm Solar power + Lithium battery Number of sensors: 2 Automatically switches from light to dark shade on arc strike Ultra fast: 0.6 milliseconds Return to light state from 0.2S to 0.8S UV protection: DIN16 Optical class 1/1/1/2 Weight 420 grams

Application fields: MMA 10-150 / TIG 10-175 / MIG-MAG 10-200 Standards: EN 175 / EN 379

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.

Automatic darkening welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable shade control (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter darkens automatically when the welding arc appears and quickly returns to a transparent state when it stops, eliminating the need to raise and lower the mask at each work pause and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XXL viewing area, 100 x 93 mm
- 4 sensors,
- dark-to-light delay adjustment,
- battery and solar powered,
- clear glass filter protection.
Optical class 1/1/1/2

This welding mask requires two CR2032 batteries during use (included at the time of sale)
