Welds steel, stainless steel and aluminium from 0.6 to 6mm in all positions
MIG duty cycle: 130A at 60% / 110A at 100%
MMA duty cycle: 110A at 60% / 90A at 100%
TIG duty cycle: 135A at 60% / 115A at 100%
Current range: 20 to 200A - Voltage: 76V
Combines 4 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.2 mm)
- TIG Lift DC current - Lift Arc TIG starting
- MMA (basic and rutile electrodes up to 5 mm)
4 drive rolls for spool Ø 200 mm (5 kg) or Ø 300 mm (15kg)
Removable STEEL MIG torch 250A 3m (8mm contact tip)

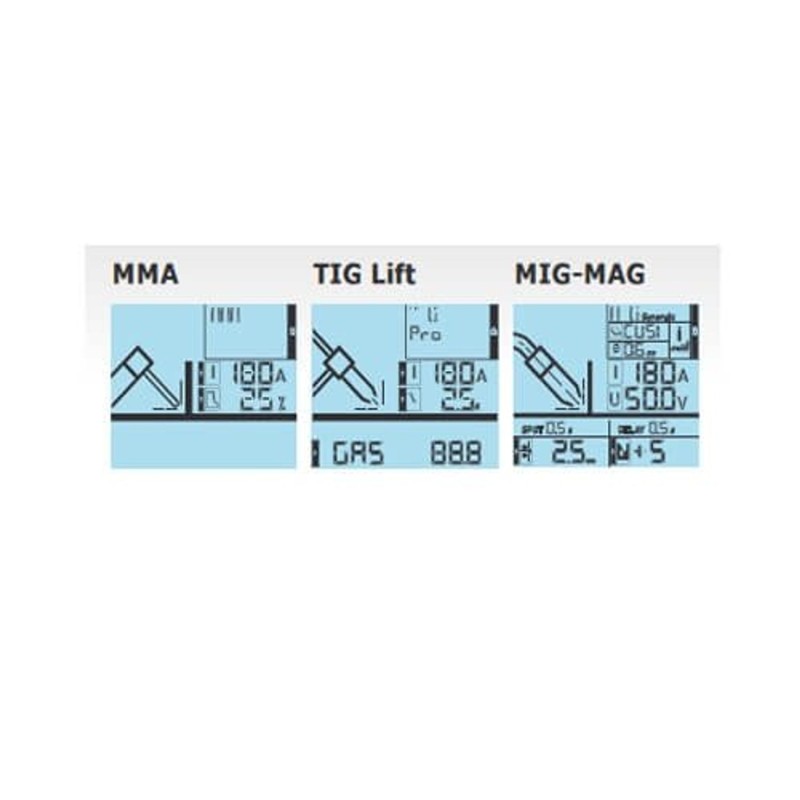

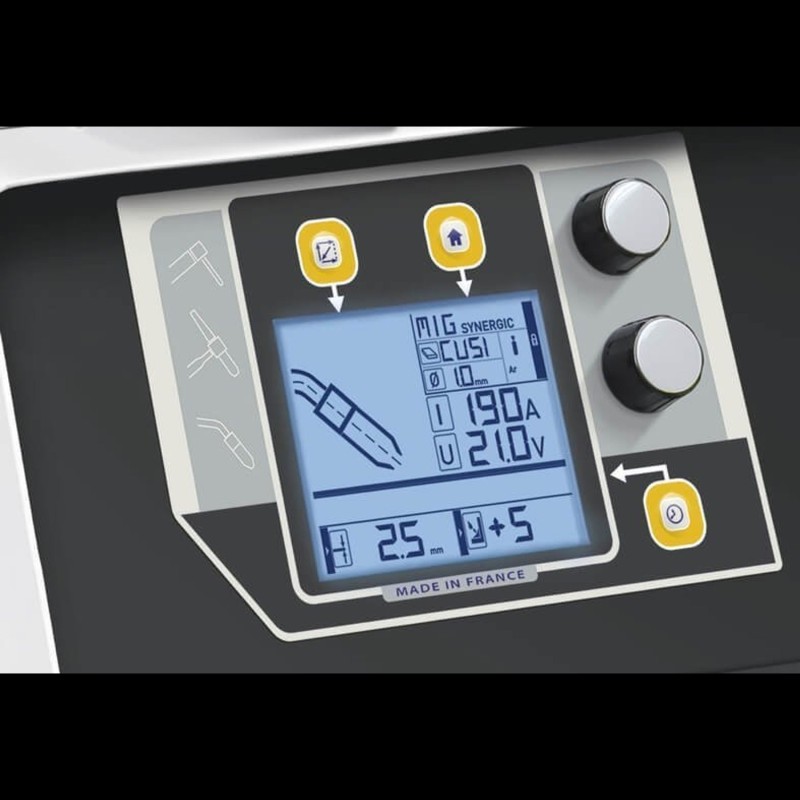

Digital interface and very intuitive adjustment
Compatible with 9 kVA generator and 100m extension lead
Gas cylinder support included
Single-phase 230 V - 16 A power supply
Dimensions: 41 x 72 x 77 cm - 27kg
IP21 rating
Supplied with:
1 x 250 A torch 3m MB25
1 x 200 A earth clamp 2.5 m
1 x MMA electrode holder 2 m
2x 0.8 / 1.0 drive rolls
TIG torch optional
