- -10%
MMA and TIG welding + DC gouging
Maximum power: 400A at 60% and 310 A at 100%
Welding current 10-410 A
Power supply 400 V three-phase
Protection class: IP23S
Dimensions: 525 x 280 x 475 mm - Weight 35kg
Reference: 0447100881

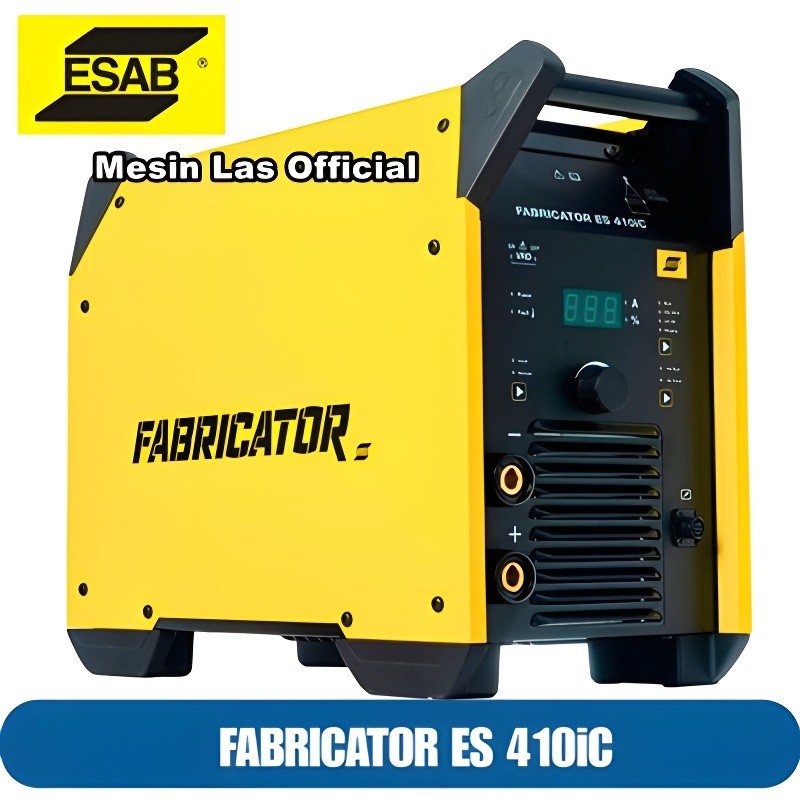

ESAB - Fabricator ES 410iC CE
30,693.95 kr
27,624.56 kr
22 099,65 kr tax excl.
Supplier stock
Dispatched within 5 to 7 days
MMA and TIG welding + DC gouging
Maximum power: 400A at 60% and 310 A at 100%
Welding current 10-410 A
Power supply 400 V three-phase
Protection class: IP23S
Dimensions: 525 x 280 x 475 mm - Weight 35kg
Description
The Fabricator ES 410iC is a robust inverter-type generator for MMA (Stick) welding, TIG welding (LIVE TIG) and DC carbon arc gouging.
The Fabricator ES 410iC is designed to withstand intensive use, making it a perfect solution for industrial applications. Ideal for heavy industries using all types of electrodes, including cellulosic.
- The intuitive control panel of the ES 410iC makes it easy to optimize settings, reducing the time needed to achieve the best welding characteristics.
- Equipped with Hot Start and Arc Force functions with the ability to adjust parameters during welding.
- Hot Start helps avoid arc starting issues while the Arc Force function adjusts the current more or less during welding to improve weld quality.
- Built-in anti-stick function to prevent the electrode from accidentally sticking in the weld pool
- Wide primary voltage tolerance range for a stable arc
- Inverter control for high efficiency and low energy consumption
- Excellent welding performance with all electrode types, including cellulosic
Industrial inverter-type generator for heavy-duty use:
- Pipe workshops
- Industrial and general fabrication
- Civil construction
- Pressure vessels
- Shipbuilding and offshore
Characteristics of ESAB - Fabricator ES 410iC CE
| Supply voltage (in Volts) | 400 V -3Ph -50/60 Hz | Duty cycle at 40°C MMA | 400 A @ 60% - 310A @ 100% |
| Possible electrode type | Rutile - basic - cellulosic | Warranty | 3 years |
| Weight in kg | 36 | Protection rating | IP23S |
| Usage | Industry | Gouging Mode | Yes |
| Electrode diameter | 3.2 mm, 4 mm, 2.5 mm, 2.0 mm, 1.6 mm | Electrode type | Rutile, Basic, Aluminium, Hardfacing, Gouging, Rutile-basic 299, Rutile-Cellulosic, Cellulosic |
| Thickness to weld | 1.5 to 3 mm, 2.5 to 6 mm, 5 to 8 mm, Over 8 mm |
