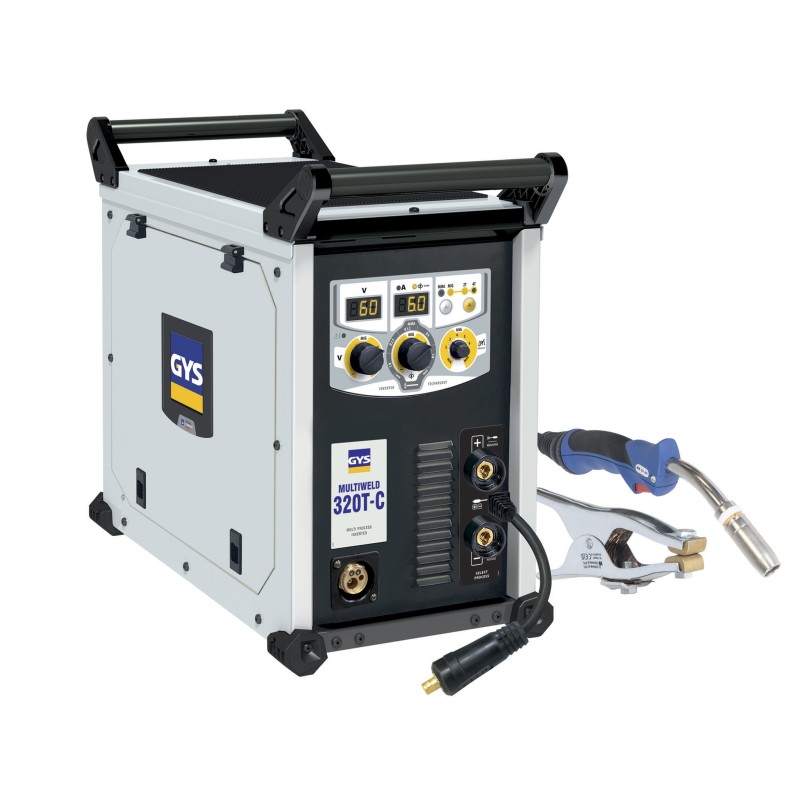

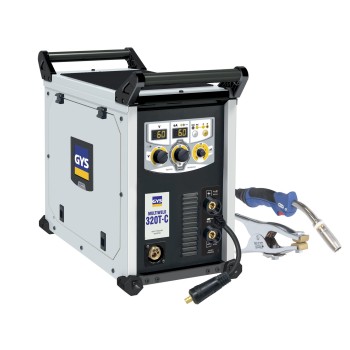

GYS - MULTIWELD 320T-C welding machine with accessories

Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminium
MIG duty cycle: 240A at 60% / 200A at 100%
MMA duty cycle: 220A at 60% / 180A at 100%
Current range: 40 to 300A
Combines 3 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.2 mm and Alu 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 6 mm)
4 rollers for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable 250A MAG torch (2T/4T) 3m long (8mm contact tip)
Digital interface with very intuitive settings
Compatible with 10kVA generator
Gas cylinder holder for cylinders up to 4m3
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79x 47 cm - 44kg
IP21 rating

Delivered with:
1 x 360 A 4m MB36 torch
1 x 400 Amp 4m ground clamp
1x User manual
2x 1.0/1.2 mm rollers

High duty cycle: 200A at 100%
Multi-process: MIG with/without gas and MMA
Designed for performance and precision
4-roller wire feed system
Wire diameter: 0.6-1.2mm / 0.8-1.2mm
Compact and mobile design with integrated wheels and cylinder support
Lighter and more practical torch
Robust enclosure compliant with IP23 standard
Perfect for welding aluminum, stainless steel, bronze and mild steel
Three-phase - 400V
Weight 61kg - Dimensions 977 x 487x 800 mm

Ideal for fabrication, maintenance, repair, construction and production welding

The POWERTEC® Lincoln i are new compact inverter-type generators for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model presented below is the Powertec 320 A standard display.

Manual adjustment of voltage and wire feed speed
Quick button for selecting the welding process and shielding gas

Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT PERFORMANCE
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulations on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with these regulations by offering energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Supplied with
Earth clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

The POWERTEC® Lincoln i are new compact inverter-type power sources designed for MIG-MAG & MMA welding. They are available in two power outputs (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large color screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 250A Advanced

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' color screen
USB connectivity: Simplified software updates and diagnostics thanks to built-in monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready to use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimized wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and consistent wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilization of the welding arc.
STABILITY Exceptional arc stabilization ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with
Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminum
MIG duty cycle: 400A at 60% / 240A at 100%
MMA duty cycle: 400A at 60% / 240A at 100%
Amperage range: 40 to 400A
Combines 3 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 6 mm) +
4 drive rolls for Ø 200 mm spool (5 kg) or Ø 300 mm (15 kg)
Removable MAG torch 250A (2T/4T) 3 m (8 mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10 kVA generator
Gas cylinder support for cylinders up to 4 m³
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79 x 47 cm - 48 kg
IP21 rating

Supplied with:
1x MIG 36 torch - 4 meters
1x 400A ground clamp - 4 meters (35/50 mm connector)
1x User manual
2x drive rolls 1.0/1.2 mm

The POWERTEC® Lincoln i are new compact inverter-type power sources designed for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

Two models are presented:

Powertec i320 standard (STD) Manual adjustment of welding parameters
Manual adjustment of voltage and wire feed speed
Quick button for welding process and shielding gas selection
Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Powertec i320 synergic (ADV)
Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Simplified software updates and diagnostics thanks to built-in monitoring functions.

This machine features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FEATURES
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
IGNITION Instant and repeatable arc ignition at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with:

Earth clamp and cable 3 m long.
LINCGUN PROMIG 300 torch 4 m long
Gas hose 2 m long
Reversible drive roll for steel/stainless wire Ø 1 and 1.2 mm
Power cable 5 m long

Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminium
MIG duty cycle: 200A at 60% / 180A at 100%
MMA duty cycle: 200A at 60% / 180A at 100%
Current range: 40 to 250A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless steel wire Ø 0.6/0.9 to 1.2 mm and aluminium 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 5 mm)
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable MAG torch 250A (2T/4T) 3m (8mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10kVA generator
Gas cylinder holder for cylinders up to 4m3
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79x 47 cm - 48kg
IP21 rating

Delivered with:
1 x 250 A MB25 torch 3m
1 x 200 Amp earth clamp 4m
1x User manual
2x 0.8/1 mm drive rolls

This is the very latest generation of welding unit manufactured by Lincoln, designed to replace transformer-based units which will be banned from production from 31 December 2022 as they are too energy-intensive.

This is a unit allowing welding by:
- Mig-MAG
- Flux-cored wire with and without gas
- Coated electrodes

Synergic unit (easy to use) with 24 built-in programs

Products in this QUICKMIG range are easy to use and set up.
They enable welding of light structures and small dimensions such as small agricultural equipment.
The range includes generators delivering 250A and 300A, equipped with large LED screens and a user-friendly interface.
As standard, the QUICKMIG offers an efficient 4-roll wire feed system regardless of material type, a connector suitable for a MIG torch, wheels and a gas cylinder support at the rear of the trolley.

The Quikmig 250 is a unit powered by three-phase current (400V - 3pH - 50/60Hz) and has a duty cycle of 230A@60% - 250A@35% - 175A@100%.

Included equipment
• Power cable (3 m) without plug
• Earth cable (3 m)
• Gas hose (2 m)
• Drive rolls for solid wire 0.8 and 1.0
• User manual on USB key

Optional:
- MIG-MAG torch not included.
Available on the website and suitable for this unit model and power: Weldline LGS2 -250
- Adapter for 200 mm spool reference R-1019-125-1/08R available for purchase on our website
- Electrode holder for stick (coated rod) welding

Intelligent 4-in-1 three-phase welding machine
MIG duty cycle: 230A at 60% / 220A at 100%
MMA duty cycle: 230A at 60% / 200A at 100%
TIG duty cycle: 240A at 60% / 220A at 100%
Current range: 15 to 250A - Voltage: 69V
Combines 4 welding processes in 1 machine:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1.2 mm and aluminum 0.8 to 1.2 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.6 mm)
- TIG Lift DC current - TIG Lift ignition
- MMA (basic and rutile electrode up to 5 mm)
4-roll wire feeder for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable EURO 250A 3m STEEL MIG torch (1.2 mm contact tip)
Digital interface with highly intuitive adjustment
Compatible with 9 kVA generator and 100 m extension cord
Gas cylinder support included
Three-phase 400 V - 16 A power supply
Dimensions: 75 x 45 x 80 cm - 45 kg
IP23S classification for outdoor use

Supplied with:
1 x 250 A 3m MB25 torch
1 x 3m ground clamp
1x User manual
2x 1/1.2 drive rolls

TIG torch optional

The Lincoln POWERTEC® i units are new compact inverter-type welding machines designed for MIG-MAG & MMA welding. They are available in two power outputs (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 250A standard display.

Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas

Quick access to the most frequently used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and consistent wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with
Earth clamp and cable length 3 m.
Gas hose length 2 m
Reversible drive roll for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

The Lincoln POWERTEC® i units are new compact inverter-type generators for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

Two models are presented:

Powertec i250A standard (STD) Manual adjustment of welding parameters
Manual adjustment of voltage and wire feed speed
Quick button for selection of welding process and shielding gas
Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Powertec i250 synergic (ADV)
Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier with built-in monitoring functions.

These units feature:
INNOVATIVE INTUITIVE INTERFACE
Easy navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during changes in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Supplied with

Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

This Inverter Synergic technology welding unit Lincoln Speedtec 320 CP allows you to weld using 2 processes: MMA-MIG-MAG.
This unit is perfectly suited for maintenance and repair work, metal construction (on-site or in the workshop) and the construction of aluminium structures.

It allows welding with rutile and basic electrodes (stainless steel - cast iron, etc.) from Ø 1.6 to 4 mm (electrode holder not included)

It operates on a 20 A - 400 V/3Ph domestic outlet
4-roller wire feed system

Its adjustment range is 20 to 200 A in MIG-MAG mode and 20 to 160 A in MMA mode
Easy polarity reversal to use flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.

It is equipped with the following devices:

PFC (Power Factor Corrector) It can be used with a 100 m extension cord without any loss of power.
The power supply can be provided by a generator.

HOT START adjustable, which reduces the risk of sticking when the electrode and workpiece are cold, and also facilitates arc striking and penetration.

ARC FORCE adjustable, which maintains constant amperage regardless of arc length.

ANTI-STICKING reduces the risk of electrode sticking to the workpiece.

Key features:

The high duty cycle of this unit guarantees use without premature triggering of the thermal protection system.

This unit is delivered at the time of sale with:
1 x 5 m power cable
1 x 2 m gas hose
1 x 5 m ground cable
1 set of Ø 0.8 and 1 mm rollers for steel welding wire
1 x 300 mm wire adapter

The Lincoln POWERTEC® i units are new compact inverter-type welding machines for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of the human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 320 A Advanced display

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' color screen
USB connectivity: Simplified software updates and diagnostics thanks to included monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to weld V Display of useful information V Multilingual navigation menu
MORE FEATURES
AUTO START-UP The machine is immediately ready for use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to included monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rolls: smooth and steady wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Ground clamp and cable length 3 m.

Gas hose length 2 m
Reversible drive roll for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

The generators in the POWERTEC® i COMPACTS RANGE are designed on the latest Lincoln Electric inverter platform for optimal MIG-MAG and MMA welding performance with excellent energy efficiency. The range includes generators delivering 250A, 320A, 380A and 450A, equipped with either a STANDARD screen (i250 & i320 models) or an ADVANCED screen (i250, i320, i380 & i450 models), to best meet customer needs depending on their welding applications. The COOLARC® 26 cooling unit is available in Plug & Play version for the POWERTEC® i380C & i450C ADVANCED.

The model presented below is the Powertec I380 ADVANCED, with a high duty cycle: 320A@60% - 240A@100%, available in two versions
Air-cooled torch
Water-cooled torch

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding faults...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' colour screen
USB connectivity: Software updates and diagnostics made easier with built-in monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Easy navigation even when wearing welding gloves.
Intuitive adjustment by selecting the process and the thickness to weld
Display of useful information
Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT SUITABILITY
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC START Instant and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during changes in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require the gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new tolerated limits.

Supplied with for both versions:

Ground clamp and cable length 3 m.
1 Lincgun PROMIG 300 or 330w torch depending on the unit chosen (water or air-cooled torch)
Gas hose length 2 m
Reversible roller for steel/stainless wire Ø 1 and 1.2 mm
Power cable length 5 m

As a supplement for the unit with water-cooled torch

Coolarc 26 cooling unit
Freezcool coolant – 9.6 L container

This is the latest generation of welding unit produced by Lincoln, designed to replace transformer-based units which will be banned from manufacture as of 31 December 2022 due to their excessive energy consumption.

This is a welding unit allowing:
- MIG-MAG
- Flux-cored wire with and without gas
- Coated electrodes

Synergic unit (easy to use) with 24 integrated programs

Products in the QUICKMIG range are easy to use and set up.
They enable welding of light structures and small-scale assemblies such as small agricultural equipment.
The range includes generators delivering 250A and 300A, equipped with large LED screens and a user-friendly interface.
As standard, the QUICKMIG features an efficient 4-roller wire feed system regardless of material type, a connector suitable for a MIG torch, wheels and a gas cylinder support at the rear of the trolley.

The Quikmig 300 is a three-phase powered unit (400V -3pH -50/60Hz) with a duty cycle of 230A@60% - 300A@35% - 175A@100%.

Included equipment
• Power cable (3 m) without plug
• Ground cable (3 m)
• Gas hose (2 m)
• Drive rollers for 0.8 and 1.0 solid wire
• User manual on USB key

Options:
- MIG-MAG torch not included.
Available on the site and compatible with this unit model and power: Weldline LGS2 -250
- Adapter for 200 mm spool reference R-1019-125-1/08R available for purchase on our site
- Electrode holder for stick welding
