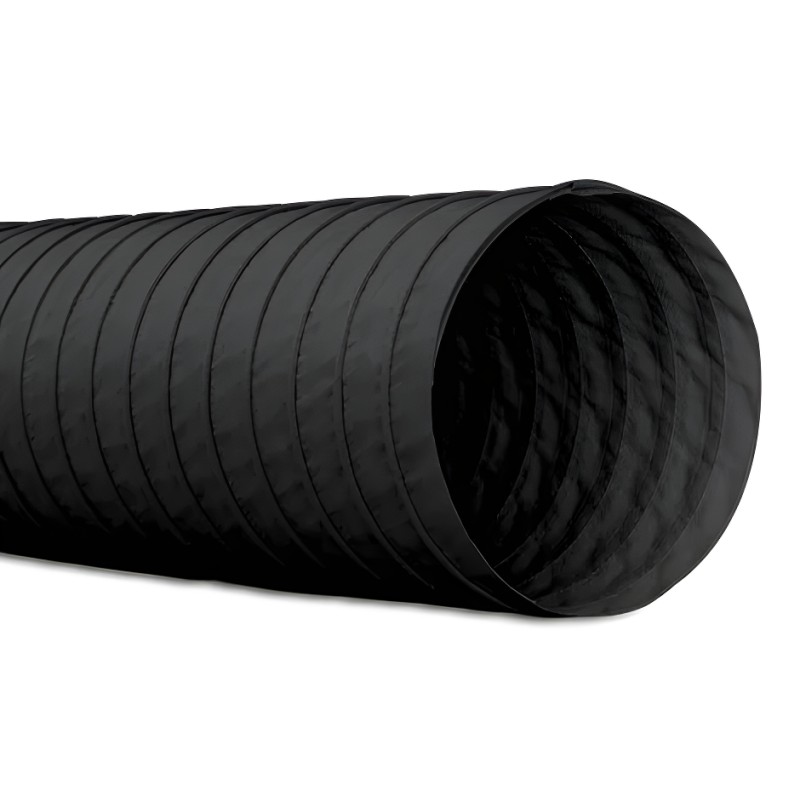

KEMPER - Suction or discharge hose for welding fume extractor

Extraction capacity: 750–1700 m³/hour
Best efficiency point: 1240 m³/h
Maximum fan capacity: 2050 m³/hour
Static pressure: 800–1930 Pa
Static pressure max: 2050 Pa
Motor power: 0.75 kW
Connection voltage: 3 x 400V/50Hz (single-phase kit available on request)
Noise level: 65 dB(A)
Radial fan type
Extraction arm diameter: 150 mm

The kit includes:
The ECO L fan 0.75 kW – 3 x 400V
The extraction arm with hood
The wall bracket
1 motor protection circuit breaker
1 connection hardware kit
1 discharge hose, supplied at 1.25 m length extendable up to 5 m and a wall outlet.

Extraction capacity: 750–1700 m³/hour
Best efficiency point: 1240 m³/h
Maximum fan capacity: 2050 m³/hour
Static pressure: 800–1930 Pa
Static pressure max: 2050 Pa
Motor power: 0.75 kW
Connection voltage: 3 x 400V/50Hz (single-phase kit available on request)
Noise level: 65 dB(A)
Radial fan type
Extraction arm diameter: 150 mm

The kit includes:
The ECO L fan 0.75 kW – 3 x 400V
The extraction arm with hood
The wall bracket
1 motor protection circuit breaker
1 connection hardware kit
1 discharge hose, supplied at 1.25 m length extendable up to 5 m and a wall outlet.

The extraction kit, consisting of a flexible suction arm with a length of 2 to 4 m and a fan, is a particularly simple and cost-effective solution when air filtration is not essential. It is suitable for large quantities of fumes and dust such as welding fumes, gases, vapours, light dust or vehicle exhaust gases in continuous use.

It features a 360° adjustable hood with a flow rate control valve.
Internal load-bearing structure with double parallelogram and compensation springs.
Rigid aluminium pipe with epoxy coating - 3 flexible sections at the joints
Silumin aluminium cast housing and fan, spark-proof

Suction capacity: 1000 m³/hour
Maximum fan capacity: 2000 m³/hour
Motor power: 0.75 kW with 2 and 3 m duct and 1.1 kW with a 4 m duct (2.2 kW motor available on request)
Connection voltage: 3 x 400V/50Hz (single-phase kit available on request)
Noise level: 73 dB(A)
Radial-type fan.
Suction arm diameter: 150 mm.

The kit includes:
The fan
The suction arm with hood
The wall bracket
1 motor protection circuit breaker
1 connection hardware kit
1 discharge hose, supplied at a length of 1.25 m extendable up to 5 m and a wall outlet.

These filters are suitable for Kemper brand welding fume extractors listed below
- Smartfil model for the 25 m² filter
- Smartfil - Maxifil - Wallmaster models for the 42 m² filter

The original filter for the SmartFil extraction unit offers the best compromise between filtration and technology.
The snail filter has a filtration surface of 25 m² or 42 m² depending on the model chosen, a filtration class of E12 and a separation efficiency of ≥ 99.5%.
Important note: by using original filters, you comply with regulations, as this allows you to maintain and validate the IFA W3 certification as well as the warranty on your unit.

Filter type: Safe Change Filter (filter change without risk of contamination)
Aluminium pre-filter and polyester filter material.
Rubber seal
Filtration class E12
Separation efficiency: ≥ 99.5%

The AER 201 portable purifier filters welding fumes in enclosed or hard-to-reach environments where standard fume reduction systems are impractical, and is ideal for low to medium pollutant concentrations and intermittent use.
Suction capacity: 110 m³/hour.

The AER 201 is supplied with a hose and a plastic suction nozzle, while a magnet ensures secure attachment in any position.
It is possible to add a second outlet hose with a diameter of 50 mm and a length of 2 m. Compatible with torches with integrated welding fume extraction.
BIA "M" filtration efficiency 99%.
NOT suitable for use in potentially explosive environments.

The filter section consists of a spark-resistant metal filter, a cartridge filter and an activated carbon filter.

The portable mechanical filtration purifier is supplied with:

- 2-metre flexible hose
- Conical nozzle with magnetic holder
- Spark-resistant metal filter
- H13 cartridge filter (99%)
- Activated carbon filter

Extraction capacity: 900 - 1900 m3/hour
Best efficiency point: 1570 m3/h
Maximum fan capacity: 2400 m3/hour
Negative pressure: 1100 - 2170 Pa
Static under-pressure: 2250 Pa
Motor power: 1.1 kW
Supply voltage: 3 x 400V/50Hz (single-phase kit available on request)
Noise level: 70 dB(A)
Radial fan type
Extraction arm diameter: 150mm

The kit includes:
The ECO XL fan 1.1kW - 3 x 400V
The extraction arm with hood
The wall bracket
1 motor protection circuit breaker
1 connection hardware kit
1 discharge hose, supplied at a length of 1.25 m extendable up to 5 m and a wall outlet.

SmartFil is a mobile welding fume filtration unit for regular use in welding applications with average quantities of fumes and dust.
The disposable filter of the extraction unit has a particularly high filter surface area of 25 m² and is replaced without any contamination when saturated.
SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.
This unit holds IFA-W3 certification

This welding fume extraction unit is offered with an arm length of 2, 3 or 4 m and in single- or three-phase power supply.

The articulated arm is made of lacquered aluminium tubing, offering better resistance to welding spatter, and features 360° rotation including the hood.
Unit fitted with a particulate filter - 2 filtration levels.
SCF System - Filter change without risk of contamination

Suction power: 1,100 m³/hour
Filtration surface area: 25 m² (original) - This can be increased to 42 m² by replacing the original filter (filter available as an option on the site).
SCF System - Filter change without risk of contamination and filter saturation monitoring device
Unit weight: 131 kg (without arm)
Noise level: approx. 70 dB(A)
Separation efficiency: ≥ 99.5%
Dimensions: 79.5 x 83.6 x H 117 cm

We offer this fume extractor in single-phase (1 x 230 V - 50 Hz) or three-phase (3 x 400 V - 50 Hz) version.
You must choose the power supply and the arm length when ordering, as 3 options are available.

All accessories allowing you to extract welding fumes outside your premises are available below.

SmartFil is a mobile welding fume filtration unit for regular use in the welding field with average quantities of fumes and dust.
The disposable filter of the extraction unit has a particularly high filter surface area of 25 m² and is replaced without any contamination when saturated.
SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.
This unit holds IFA-W3 certification

This welding fume extraction unit is offered with an arm of 2, 3 or 4 m in length and in single- or three-phase power supply.

The articulated arm has a 360° rotation including the hood.
Unit fitted with a particulate filter - 2 filtration levels.
SCF system - Filter change without risk of contamination

Its suction power is 1,100 m³/hour
Filter surface area 25 m² as standard - This can be increased to 42 m² by replacing the original filter (filter offered as an option on the site).
SCF system - Filter change without risk of contamination and filter saturation monitoring device
Unit weight: 131 kg (without arm)
Sound level: approx. 70 dB(A)
Separation efficiency: ≥ 99.5%
Dimensions 79.5 x 83.6 x H 117 cm

We offer this fume extractor in single-phase (1 x 230 V - 50 Hz) or three-phase (3 x 400 V - 50 Hz) versions
You must choose the power supply and arm length when ordering, as 3 options are available.

All the accessories allowing you to extract welding fumes to the outside of your premises are available below.

Wall air outlet Ø 200 with bird guard.
Length 300

This wall air outlet is used in combination with the discharge hose.

This casing is an essential component for extracting welding fumes outside the area where welding operations take place.
It is designed for the Smartfil welding fume extractor/aspirator.
