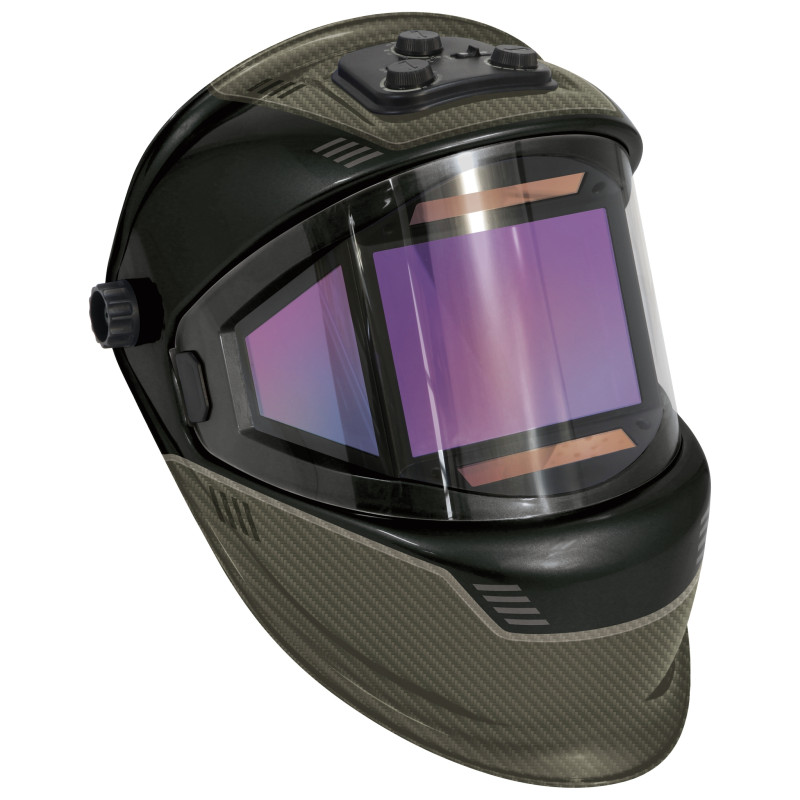

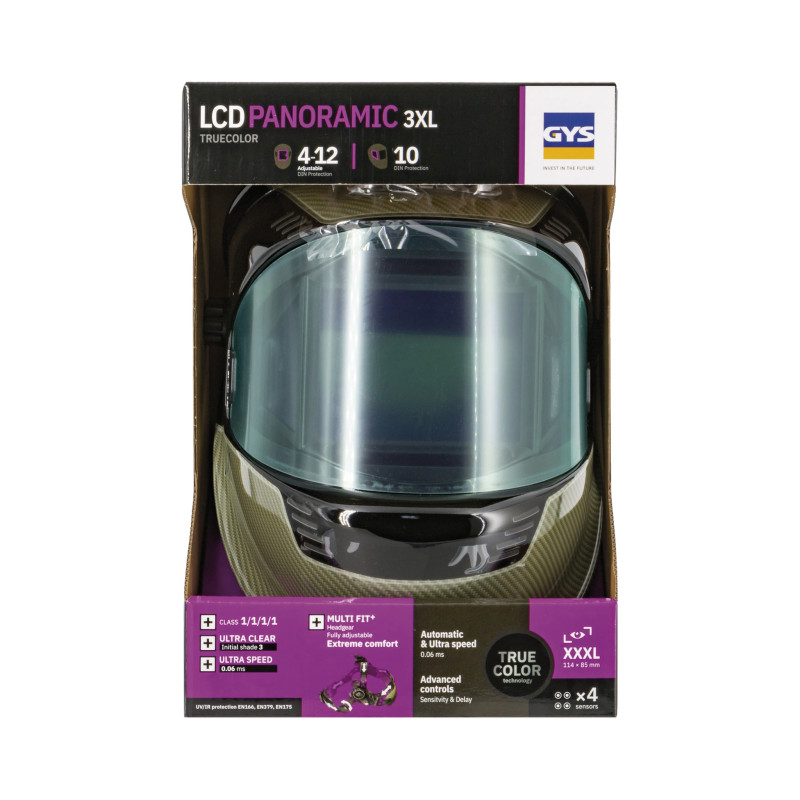

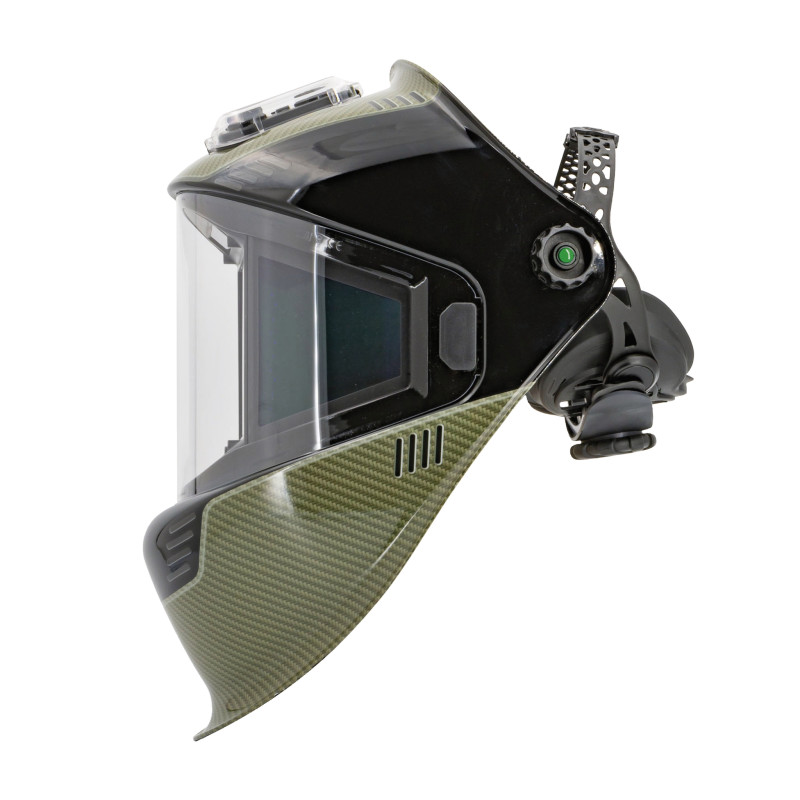

GYS LCD PANORAMIC 3XL Welding Helmet

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:

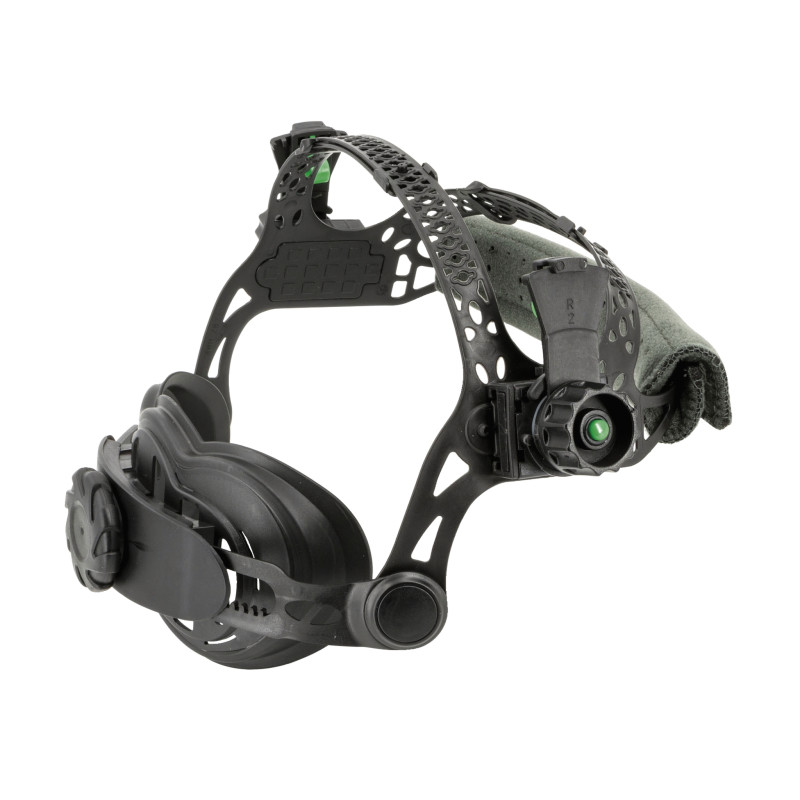

a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

S1040 welding helmet

This auto-darkening welding helmet features 2 sensors.
Solar power + 2 AAA batteries
Viewing area: 98 x 40 mm. Wrap-around shape for optimal head protection.
Switching time light/dark: 1/25000 sec
Return to light state adjustable from 0.1 to 1 second.
Adjustable shade from 9 to 13 for welding.
Grinding mode via internal button.

the "LS" technology applied to the lens of this welding helmet, in addition to its role of protecting against harmful rays, helps increase the penetration rate.
In clear mode, the lens lets more color through to the welder's eye, allowing a more precise rendering of detail by reducing the eye's adaptation effort.
The welder will be more precise in their movements and less fatigued during welding operations.

18-month warranty.

Optical class 1/1/1/2
Weight 475 g

Delivered with:
2 outer protective lenses
1 inner protective lens
1 sweatband
1 comfort cushion on headband.

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Welding helmet with powered air-purifying respiratory protection Protects eyes from IR/UV and the operator's respiratory tract Optimum field of view 75x112mm True-Color Technology - Optical class 1/1/1/1 Lithium battery life of approximately 8 hours - Charging time 1h 3 adjustable airflow rates to suit requirements (from 170 l/min to 230 l/min) 4 solar sensors for very high sensitivity and ultra-fast reaction time (0.08 ms) Fixed light shade: DIN 3 Variable dark shade DIN 9/12-13/15 Digital controls Grinding mode The filter is rated TH3 and retains 99.996% of welding particles Standards EN 166 / EN 175 / EN 379 / EN 12941 Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter Weight 5 kg

2 sweatbands are available

Front headband (front of the headband) reference 20-3100V 17
Length 17 cm x 2.5 cm wide.

Rear headband reference 203300V
Length 14 cm x 2.5 cm wide

Automatic darkening welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable shade control (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter darkens automatically when the welding arc appears and quickly returns to a transparent state when it stops, eliminating the need to raise and lower the mask at each work pause and thus allowing hands-free operation.
In addition to adjusting the filter sensitivity according to the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XXL viewing area, 100 x 93 mm
- 4 sensors,
- dark-to-light delay adjustment,
- battery and solar powered,
- clear glass filter protection.
Optical class 1/1/1/2

This welding mask requires two CR2032 batteries during use (included at the time of sale)

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

The Sentinel A60 Air welding helmet builds on the innovations of the standard Sentinel A60, taking welding to the next level. A wide panoramic view and excellent 1/1/1/1 EN optics provide an even wider view of the weld pool without any distortion.

The redesigned auto-darkening filter (ADF) features the new light control technology
with broad-spectrum OpTCS ™ from ESAB. This offers an enhanced True Color vision mode, for less eye fatigue as the working day becomes more demanding. New shade adjustment settings in 0.5 increments allow more precise vision control.

The outer shell retains Sentinel's signature design and integrates a new air diffuser screen.
The fully adjustable Halo ™ internal headband and the external grinding mode button complete the most comfortable and highest-performing lenses ever produced by ESAB.

- ADF viewing area : 118 x 71 mm (4.65 x 2.80 inches)
and intuitive ADF controls, including sensitivity and delay
- Light state range: DIN 3 / 5 – 13, adjustable in 0.5 increments and ADF with adjustable setting
- ESAB OpTCS technology with True Color Lenses
- 9 programmable memory slots
- Arc sensors: 4
- Fast switching time of 0.08 milliseconds - Battery CR2450 replaceable
- Low battery LED, grinding mode LED grinding and shade lock LED

The EPR-X1 respiratory system allows you to adjust the airflow with a simple press of a button, enabling adjustment of the flow through the P3 filter from 170 to 220 litres per minute . The system informs the user of the need to replace the filter by emitting an audible signal. The lithium-ion battery lasts up to 10 hours at 170 l/min.

The ESAB EPR-X1 PAPR unit seamlessly connects to all current ESAB PAPR welding helmets and provides advanced respiratory protection against harmful welding fume particles.

This PAPR is designed for applications ranging from occasional use to full-time industrial applications. The EPR-X1 has a robust and compact structure with a powerful fan to ensure maximum lifespan and performance. Check the battery status, fan settings and filter conditions at a glance thanks to the quick-access LED status indicators. In addition, the PAPR provides audible and vibrating alerts to inform the welder of low airflow (indicating the need to replace the filter) and low battery conditions.

The EPR-X1 turbo unit is controlled by easily accessible buttons with which three airflow speed ranges can be set: 170/190/220 l/minute. The spark arrestor and the two-stage EN12941 TH-3P certified HEPA filter are easily accessible through a removable front door.

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRYING BAG.

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.

This pack includes:

1 Panoramax clt black welding helmet
1 SWISS-AIR respiratory protection system with control panel including half mask + tubes + head and neck strap.
1 Blower unit + charger
1 shoulder harness
1 storage bag

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596
