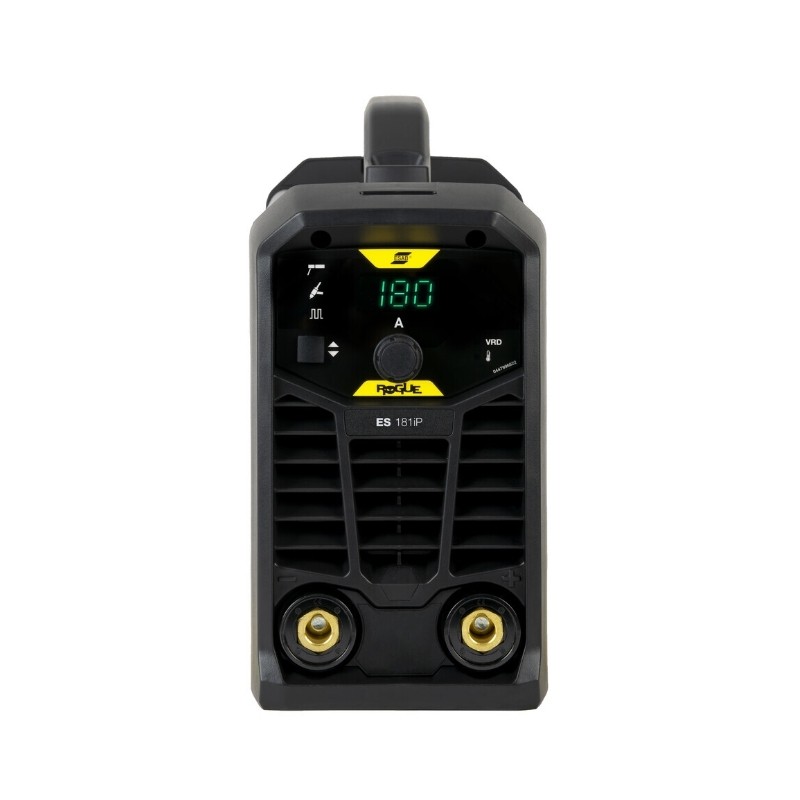

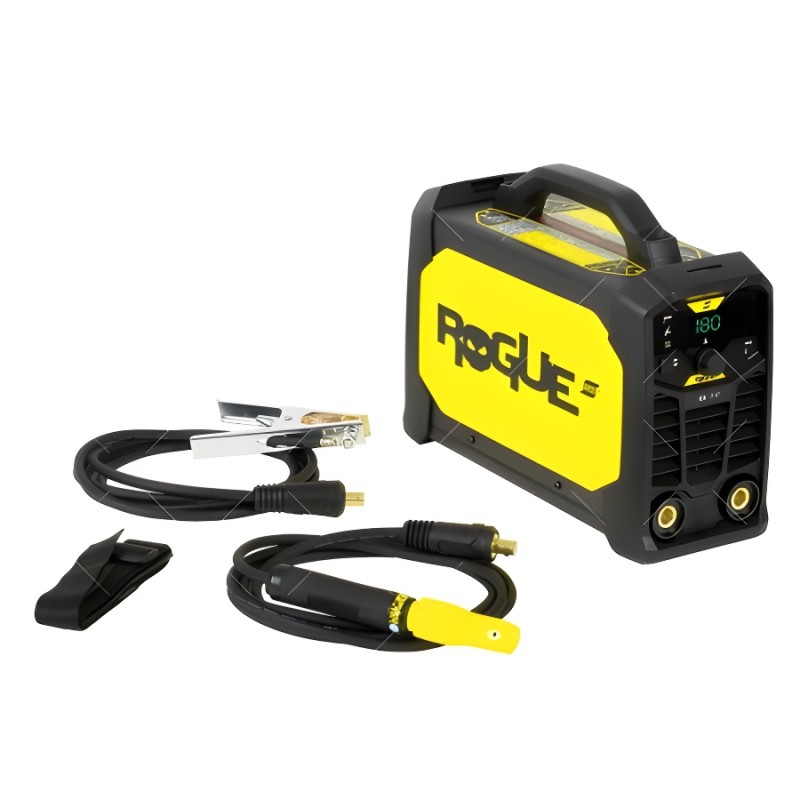

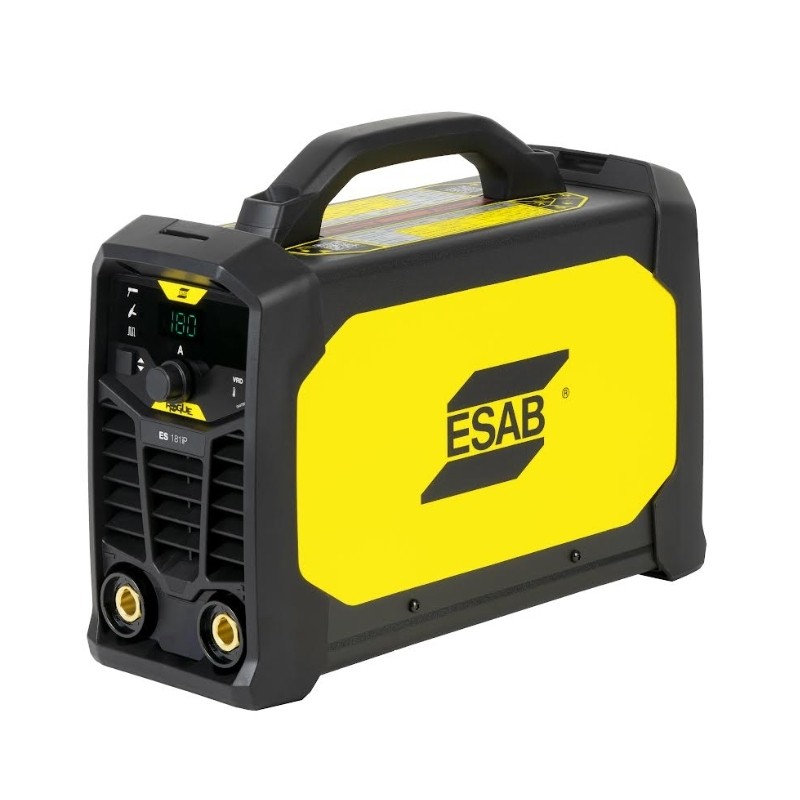

Characteristics of ESAB - ROGUE ES 181i - MMA Inverter welding machine
| Supply voltage (in Volts) |
50 / 60 Hz - 230 Volts |
Fuse (in Amperes) |
16 A |
| TIG welding adjustment range (in Amperes) |
10 - 180 A |
Duty cycle at 40°C MMA |
170 A@20% - 97 A@60% - 75 A@100% |
| TIG 40° DC duty cycle |
170 A@20% - 97 A@60% - 100 A@75A |
Open circuit voltage (in Volts) |
63 V |
| Possible electrode type |
Rutile - basic |
Usable rutile electrode diameter (Ø) for the unit (in mm) |
1.6 to 4 mm |
| Ø basic electrode usable by the unit (in mm) |
2 to 4 mm |
Usable Tungsten electrode diameter (Ø) |
1 to 2.4 mm |
| Nature of materials to be TIG welded |
steel, stainless steel, copper, cast iron, titanium, nickel |
Ventilated |
Yes |
| Type of output current |
DC |
Overvoltage thermostatic protection |
Yes +/- 15 % |
| Nature of materials to be MMA welded |
Steel - Stainless steel - Cast iron |
Generator compatible |
Yes |
| Welding process |
MMA / TIG LIFT |
Warranty |
3 years |
| Weight in kg |
6.8 |
Protection rating |
IP23S |
| Suggested generator power |
8kW - 10kVA |
Usage |
Professional
Professional |
| TIG ignition type |
TIG Lift |
Pulse function |
yes |
| Max MMA Power |
200 A Max |
|
|
