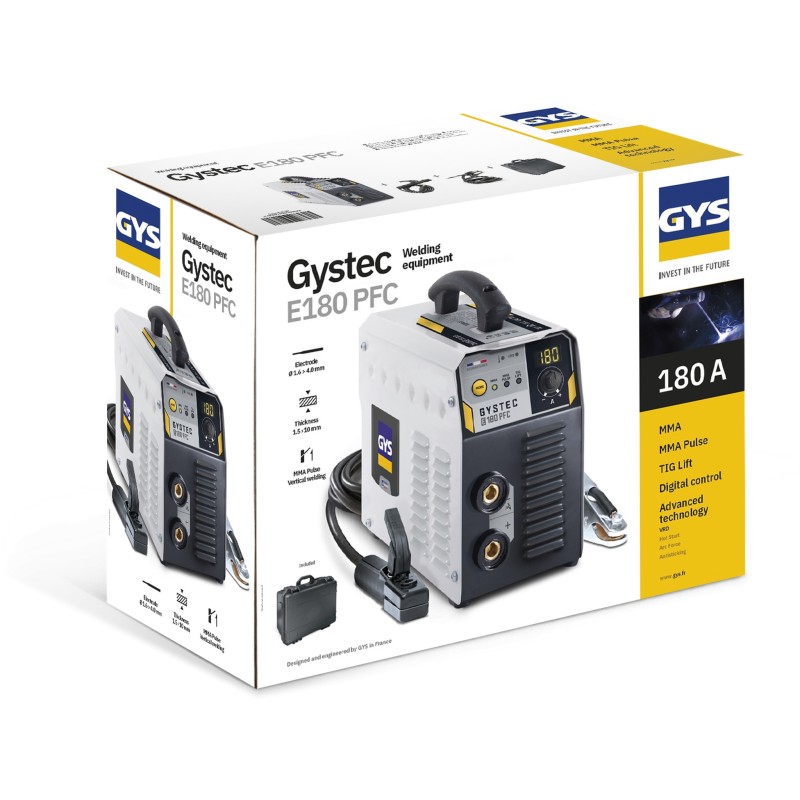

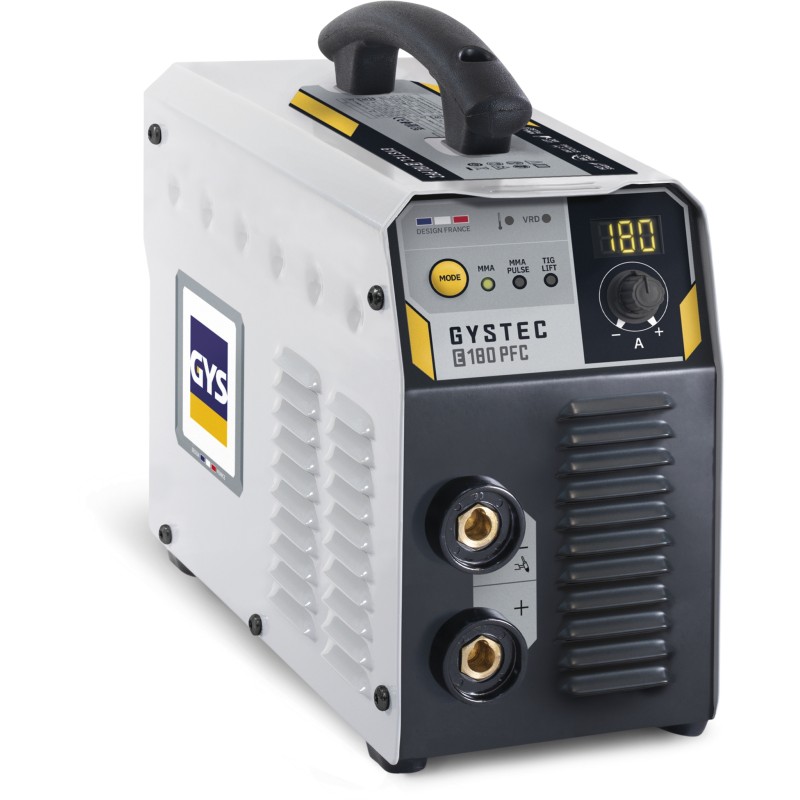

GYSTEC E180 PFC MMA Welding Machine with case
  • GYSTEC E180 PFC MMA Welding Machine with case
  • GYSTEC E180 PFC MMA Welding Machine with case
  • GYSTEC E180 PFC MMA Welding Machine with case

Duty cycle: 110A at 60% and 85A at 100%
MMA, MMA Pulse and TIG Lift process
Current range: 10 to 180A
Welds steel, cast iron and stainless steel up to 10mm thick
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 4 mm
Technologies: Hot Start, Arc Force, Antisticking, Pulse, P400, PFC and ADS
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 64 V
Weight: 5.9kg - 2-year warranty

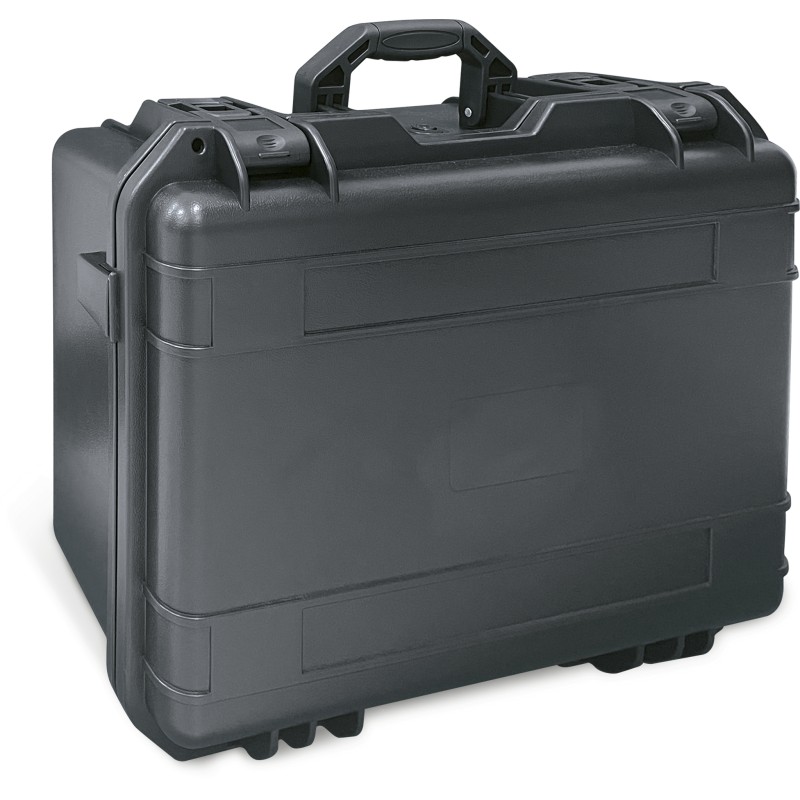

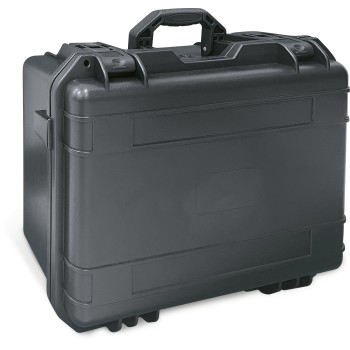

Delivered in a case with:
1x Cable with earth clamp (3 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (3 metres) 16mm2 (10/25 mm2 connector)

Optional: Valve TIG torch - 4m (044425)

Reference: 083608

GYS - GYSTEC E180 PFC welding machine with case

Gys
By purchasing this product you will earn 0 € thanks to our loyalty program. Your cart will total 0 €.
favorite_border favorite
5,134.84 kr

4 107,87 kr tax excl.

In stock
Shipping within 24h
Delivery in 24-48h
A question about this product? Characteristics Description The technical data sheet The manual

Duty cycle: 110A at 60% and 85A at 100%
MMA, MMA Pulse and TIG Lift process
Current range: 10 to 180A
Welds steel, cast iron and stainless steel up to 10mm thick
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 4 mm
Technologies: Hot Start, Arc Force, Antisticking, Pulse, P400, PFC and ADS
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 64 V
Weight: 5.9kg - 2-year warranty

Delivered in a case with:
1x Cable with earth clamp (3 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (3 metres) 16mm2 (10/25 mm2 connector)

Optional: Valve TIG torch - 4m (044425)

-20%

Buy a welding machine and get 20% off all consumables on the site

By purchasing this product you will earn 0 € thanks to our loyalty program. Your cart will total 0 €.
Last items in stock

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer
A question about this product?

Description

At the top of the GYSTEC range, the E180 PFC generator is a highly versatile 180 A single-phase inverter welding machine, integrating the latest electronic technologies and digital control via digital display. It supports 3 welding processes: MMA, MMA Pulse and TIG Lift, enabling precise, high-quality welds on steel, stainless steel and cast iron, up to 10 mm thick.

Thanks to its PFC (Power Factor Correction) technology, this machine guarantees perfect arc stability, even in the event of mains voltage fluctuations or when using site extension cables up to 100 metres. It is also compatible with generators, ideal for professional use on site.

Compatible electrodes: rutile, basic, stainless steel, cast iron (Ø 1.6 to 4.0 mm).
Digital display: precise control of parameters.
PROTEC 400 protection: withstands voltage surges up to 400 V.
Activatable VRD technology: open circuit voltage < 35 V for user safety.
Downslope function: progressive weld end.
Compact dimensions: 35 x 15 x 27 cm – 5.9 kg.

3 welding modes:

MMA: compatible with all electrodes, ideal for a variety of tasks.
MMA Pulse: perfect for vertical upward welding (pipework, pipelines…), with adjustable frequency and cold current settings.
TIG Lift: for fine welds on sheet metal, without tungsten inclusion.


Integrated welding aids:
Adjustable Hot Start: facilitated arc striking.
Adjustable Arc Force: temporary boost in case of difficulties.
Antisticking: prevents electrode sticking.
Adjustable Downslope: controlled weld end by movement.

ADS function: automatic arc fade-out (ADS)
This innovative function allows a weld bead to be finished without craters thanks to arc fade-out. The duration is adjustable and the fade-out is triggered at the end of the weld by a simple movement of the torch.

In addition, it is ideal for outdoor job sites:

Can be used with extension cables up to 100 m.
Compatible with generators.
Ventilation tunnel to limit dust intake.
Compact and portable format with storage case.

Characteristics of GYS - GYSTEC E180 PFC welding machine with case

Supply voltage (in Volts) 230 / 400 3 Ph - Volt 50-60 Hz Fuse (in Amperes) 16 A
MMA power range (in Amperes) 15- 180 A TIG welding adjustment range (in Amperes) 15 180 A
Duty cycle at 40°C MMA 120A @60% - 180A @20% Open circuit voltage (in Volts) 73 V
Possible electrode type Rutile - stainless steel/cast iron - basic Usable rutile electrode diameter (Ø) for the unit (in mm) 1.6 to 4 mm
Ventilated Yes Generator compatible Yes
Welding process MMA / TIG LIFT Warranty 2 years
Dimensions (in mm) 480 X 230 X 400 Weight in kg 11.4
Protection rating IP21 Suggested generator power 10 kVA
Usage Professional
Semi-professional		 TIG ignition type TIG Lift
Pulse function yes Delivered in a carry case Yes
PFC yes Max MMA Power 200 A Max
Welding helmet Welding helmet
Welding Gloves Welding Gloves
Rod - MMA welding electrodes Rod - MMA welding electrodes
Welding tools Welding tools

Expert advice for professionals and individuals

Benefit from the support of specialists, whatever your profile.

Secure payment

Your transactions are protected by the latest security technologies.

Express delivery in 24/48 h

Fast dispatch to France, Europe and overseas territories upon confirmation of your order.

Best price guaranteed

Enjoy the most competitive prices on the market all year round.

16 other products in the same category:

favorite_border favorite
GYSTEC 180 LA welding unit with carry case

Supplier stock

Gys

Reference: 083554

GYSTEC 180 LA welding unit with carry case

3,807.89 kr

3 046,31 kr tax excl.

or 4 x 951,97 kr

Free delivery

2-year warranty

Duty cycle: 95A at 60% and 80A at 100%
MMA and TIG Lift process
Current range: 15 to 180A
Welds steel, cast iron and stainless steel up to 10mm thick
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 4 mm
Technologies: Hot Start, Arc Force, Antisticking
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 64 V
Weight: 3.7kg - 2-year warranty

Delivered in a case with:
1x Cable with earth clamp (1.6 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (2 metres) 16mm2 (10/25 mm2 connector)

Optional: Valve TIG torch - 4m (044425)

favorite_border favorite
ESAB - Renegade VOLT ES 200
Save 10%

Supplier stock

ESAB

Reference: 0447800881

ESAB - Renegade VOLT ES 200

44,367.63 kr

49,297.37 kr

35 494,10 kr tax excl.

Free delivery

2-year warranty

Key features:
200 A output on mains power (230 V)
Up to 140 A output on battery
Includes (4) DeWALT FlexVOLT 18 V/54 V 12 Ah batteries
AMP+ hybrid mode for increased power
Lightweight and portable battery-powered welder
Durable, impact-resistant housing
Intuitive user interface, readable even in direct sunlight
Memory storage for welding parameters

favorite_border favorite

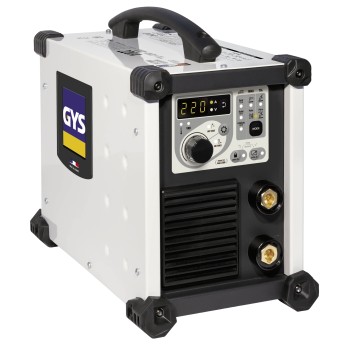

GYS - PROGYS 230 FV CEL| MMA Inverter welding machine without accessories

Supplier stock

Gys

Reference: 082786

GYS - PROGYS 230 FV CEL| MMA Inverter welding machine without accessories
(2 reviews)

12,635.27 kr

10 108,22 kr tax excl.

Free delivery

2-year warranty

Facilitates vertical welding
Outdoor use IP23
High duty cycle: 175A at 60%
MMA and Lift TIG process
Current range: 5 to 200A
Welds steel, cast iron and stainless steel up to 10mm thick
Accepts Rutile, Basic, Stainless, Cast iron, Aluminum and Cellulosic electrodes (up to Ø 5 mm)
Technologies: Hot Start, Arc Force, Anti-Sticking, PFC, Protec 400
Power supply: 230 Volts 50/60 Hz - 16A -
Storage of 10 programs per process
Open circuit voltage: 96 V
Weight: 5.5 kg - 2-year warranty

Delivered without accessories

favorite_border favorite
GYS - GYSMI E 163 | MMA inverter welder
Save 10%

In stock

Gys

Reference: 036635

GYS - GYSMI E 163 | MMA inverter welder
(8 reviews)

3,173.25 kr

3,525.83 kr

2 538,60 kr tax excl.

or 4 x 793,31 kr

Free delivery

2-year warranty

Digital interface for better readability of settings
3 welding modes: MMA, MMA pulse and TIG Lift DC
Duty cycle: 160A at 64%
Current range: 10 to 160A
Welds steel, cast iron and stainless steel up to 10mm thick
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 4 mm
Technology: Hot Start, Arc Force, Antisticking, MMA Pulse, Tig Lift, ADS
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 72 V
Weight: 7kg - 2-year warranty

Supplied in a case with:
1x Cable with earth clamp (1.6 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (2 metres) 16mm2 (10/25 mm2 connector)
1x Shoulder strap

favorite_border favorite
ESAB - ROGUE ES 181i - MMA Inverter welding machine
Save 10%

In stock

ESAB

Reference: 0705002008

ESAB - ROGUE ES 181i - MMA Inverter welding machine
(6 reviews)

5,019.52 kr

5,577.24 kr

4 015,62 kr tax excl.

Free delivery

2-year warranty

Why choose the Rogue ESAB ES 181i?
Two welding processes: MMA / Lift TIG
High duty cycle for a small unit: 97A@60% and 170A @20%
Compact and powerful: 10–180A single-phase (230V)
3-metre cable for power supply, electrode holder and earth clamp
Electrode diameter: 1.6 to 4 mm
Welds all Rutile, Basic, Stainless, Cast iron electrodes in DC
Generator compatible — IP23S
Ideal for maintenance services and the work of professional and passionate welders
3-year warranty

Delivered with:
1 electrode holder + 16 mm² cable 3 m long — 13 mm connector
1 earth clamp + 16 mm² cable 3 m long — 13 mm connector
1 shoulder strap for carrying the unit when working at height

favorite_border favorite
TELWIN - TECHNOLOGY 238 CE/MPGE TX | MMA Inverter Welding Unit
Save 10%

In stock

Telwin

Reference: 816258

TELWIN - TECHNOLOGY 238 CE/MPGE TX | MMA Inverter Welding Unit

6,796.50 kr

7,551.67 kr

5 437,20 kr tax excl.

Free delivery

2-year warranty

The advantages of the Telwin Technology 238XT CE/MPGE welding unit:
Welds cellulosic 6010 and aluminium electrodes in addition to Rutile, Basic, Stainless Steel, and Cast Iron
Digital display
More power for intensive use (40°C): 200A @35%
Ideal for difficult situations and harsh environments
Designed to withstand impacts: Shock protection and metal handle
Two welding processes: MMA / Lift TIG
Generator compatible
Compact and powerful: 5–200A single-phase (230V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Delivered in a carry case
Made in Italy
2-year warranty

This unit is delivered in a carry case and includes:

1 electrode holder + cable (length 3m, cross-section 25 mm²) Ø 50
1 ground clamp + cable (length 2m, cross-section 25 mm²) Ø 50
1 power cable with plug, length 2m, no plug

favorite_border favorite
KEMPPI - MINARC 150 | MMA Inverter Welding Unit
Save 20%

In stock

Kemppi

Reference: 6102150

KEMPPI - MINARC 150 | MMA Inverter Welding Unit
(3 reviews)

8,019.67 kr

10,024.58 kr

6 415,73 kr tax excl.

Free delivery

2-year warranty

Key features of the Kemppi Minarc Evo 150:
The little giant of MMA welding by Kemppi
Excellent welding and arc-striking quality
Automatic dynamic function
Compatible with long power cables
High duty cycle: 140A@35%
Lightweight and portable - 4kg
Generator compatible
Made in Finland
2-year warranty

This unit is delivered with:

1 electrode holder + cable (length 3m, cross-section 16 mm²)
1 earth clamp + cable (length 2m, cross-section 16 mm²)
1 power cable with plug, length 3m with Schuko plug

favorite_border favorite

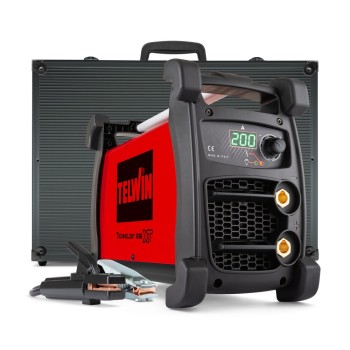

TELWIN - TECHNOLOGY 236 XT | MMA Inverter Welding Machine

Supplier stock

Telwin

Reference: 816259

TELWIN - TECHNOLOGY 236 XT | MMA Inverter Welding Machine

5,711.84 kr

4 569,47 kr tax excl.

Free delivery

2-year warranty

Key features of the Telwin Technology 236XT welding machine:
More power for intensive use (40°C): 200A @35%
Ideal for demanding situations and harsh environments
Designed to withstand shocks: Anti-shock protection and metal handle
Welds rutile, basic, stainless steel and cast iron electrodes from Ø 1.6 to 4 mm
Two welding processes: MMA / Lift TIG
Generator compatible
Compact and powerful: 5-200A single phase (230V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Supplied in a carry case
Made in Italy
2-year warranty

This machine is supplied in a carry case and includes:

1 electrode holder + cable (length 3m, section 25 mm²) Ø 50
1 earth clamp + cable (length 2m, section 25 mm²) Ø 50
1 power supply cable with plug, length 2m

favorite_border favorite
GYSMI 130P welding machine with case
Save 10%

In stock

Gys

Reference: 029972

GYSMI 130P welding machine with case

2,365.57 kr

2,628.41 kr

1 892,46 kr tax excl.

or 4 x 591,39 kr

Free delivery

2-year warranty

Ideal for hobbyists or professionals
Duty cycle: 45A at 60% and 40A at 100%
Current range: 10 to 130A
Welds steel, cast iron and stainless steel up to 8mm thick
Compatible with rutile, stainless steel, cast iron and basic stick electrodes
Electrode diameter: 1.6 to 3.2 mm
Technologies: Hot Start, Arc Force, Antisticking, PROTEC 400
Power supply: 230 Volts 50/60 Hz - 16A -
Open-circuit voltage: 72 V
Featherlight: 2.9kg - 2-year warranty

Delivered in a case with:
1x Cable with earth clamp (1.6 metres) 16mm² (10/25 mm² connector)
1x Cable with electrode holder (2 metres) 16mm² (10/25 mm² connector)
1x Shoulder strap

favorite_border favorite
ESAB - RENEGADE ES210i | - Inverter MMA welding machine

Supplier stock

ESAB

Reference: 0447700881

ESAB - RENEGADE ES210i | - Inverter MMA welding machine

12,635.27 kr

10 108,22 kr tax excl.

Free delivery

2-year warranty

Why choose the ESAB Renegade ES 210i?
Delivers maximum welding power for a single-phase unit
Welds 6010 cellulosic electrodes in addition to Rutile, Basic, Stainless, and Cast Iron electrodes
Duty cycle: 210A@25% and 135A @60%
Two welding processes: MMA / Lift TIG
Compact and powerful: 10–210A single-phase (230V)
3-metre cable for power supply, electrode holder and earth clamp
Electrode diameter: 1.6 to 4 mm
Generator compatible – IP23S
Ideal for shipbuilding, pipe manufacturing and industry
3-year warranty

Supplied with:
1 electrode holder + 25 mm² cable, 3 m length – 13 mm connector
1 earth clamp + 25 mm² cable, 3 m length – 13 mm connector
1 strap allowing the unit to be carried over the shoulder when working at height + anchor points for lifting.

favorite_border favorite

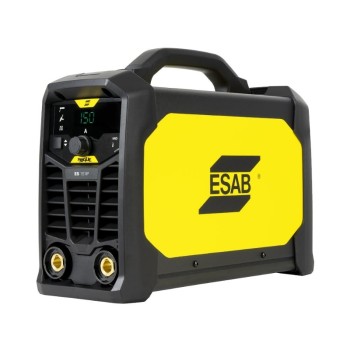

ESAB - ROGUE ES 151i - MMA Inverter Welder
Save 10%

In stock

ESAB

Reference: 0705002006

ESAB - ROGUE ES 151i - MMA Inverter Welder
(1 review)

4,442.52 kr

4,936.13 kr

3 554,02 kr tax excl.

  • Duty cycle 97A @25%
  • MMA/ Lift TIG
  • IP23S

Free delivery

2-year warranty

Why choose the Rogue ESAB ES 151i?
Two welding processes: MMA / Lift TIG
High duty cycle for a small unit: 97A@60% and 150A @25%
Compact and powerful: 10–150A single-phase (230V)
3-metre cable for power supply, electrode holder and earth clamp
Electrode diameter: 1.6 to 3.2 mm
Welds all Rutile, Basic, Stainless, Cast iron electrodes in DC
Generator compatible — IP23S
Ideal for maintenance services and the work of professional and passionate welders
3-year warranty

Delivered with:
1 electrode holder + 16 mm² cable 3 m long — 13 mm connector
1 earth clamp + 16 mm² cable 3 m long — 13 mm connector
1 shoulder strap for carrying the unit when working at height

favorite_border favorite

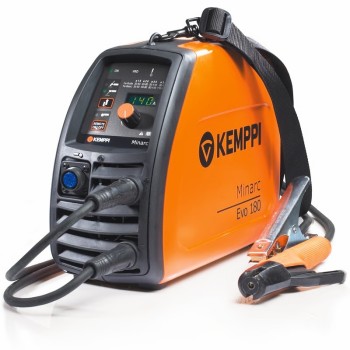

KEMPPI - Minarc EVO 180 | MMA Inverter welding machine

Supplier stock

Kemppi

Reference: 61002180

KEMPPI - Minarc EVO 180 | MMA Inverter welding machine
(1 review)

12,392.95 kr

9 914,36 kr tax excl.

Free delivery

2-year warranty

The advantages of the Kemppi Minarc Evo 180:
Premium brand: Kemppi
Compatible with all electrode types
Compatible with long power cables
High duty cycle: 140A@60% - 170A@30%
Lightweight and portable - 5.85kg
Generator compatible
Made in Finland
2-year warranty

This machine comes with:

1 electrode holder + cable (length 3m, section 16 mm²)
1 earth clamp + cable (length 2m, section 16 mm²)
1 power cable with plug, length 3m with Schuko plug

favorite_border favorite

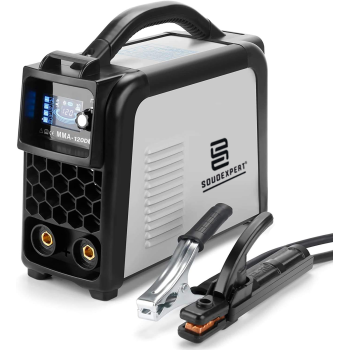

SOUDEXPERT - Inverter Welding Machine MMA+TIG LIFT 120A
Save 20%

In stock

Soudexpert

Reference: 411201

SOUDEXPERT - Inverter Welding Machine MMA+TIG LIFT 120A

796.25 kr

995.31 kr

637,00 kr tax excl.

or 4 x 199,06 kr

  • Automatic adjustment
  • Ideal for beginners and small jobs
  • Duty cycle of 70A at 60%

Free delivery

2-year warranty

LCD control screen for easy and fast adjustment
MMA and TIG LIFT function
Welds coated electrodes: rutile, stainless steel, cast iron and basic between Ø1.6 and 2.5mm
On steel, cast iron and stainless steel up to 8 mm thick
Duty cycle: 60% - 70A
Inverter technology: immediate arc striking, smooth fusion and protection
Welding aids: Hot start, Arc force, Anti-stick
Power: 20-120A - 5 kVA
Open circuit voltage: 65V
Featherweight (2.5kg) - Dimensions: D26xH20xW11cm
Compact size and carrying handle

Warranty: 2 years

Delivered complete with:
- 1 Electrode holder + 12 mm² cable (1.6 meters)
- 1 Ground clamp + 12 mm² cable (1.4 meters)
- 1 220V single-phase power cable (1.5 meters)

favorite_border favorite
This product is Euro Welding's choice This product is Euro Welding's choice
GYS - PROGYS 180A | MMA Inverter Welding Machine
Save 10%

In stock

Gys

Reference: 031425

GYS - PROGYS 180A | MMA Inverter Welding Machine
(95 reviews)

3,680.96 kr

4,089.95 kr

2 944,77 kr tax excl.

or 4 x 920,24 kr

  • Price drop
  • MMA up to 180A
  • Anti-stick

Free delivery

2-year warranty

Ultra powerful for professionals in workshop and maintenance
High duty cycle: 110A at 60% and 180A at 18%
MMA welding process
Current range: 10 to 180A
Welds steel, cast iron and stainless steel up to 10mm thickness
Compatible with rutile, stainless steel, cast iron and basic coated electrodes
Electrode diameter: 1.6 to 3.2 mm
Technologies: Hot Start, Arc Force, Antisticking, P400
Power supply: 230 Volts 50/60 Hz - 16A -
Open circuit voltage: 72 V
Weight: 5.1kg - 2-year warranty

Delivered in a case with:
1x Cable with ground clamp (1.6 metres) 16mm2 (10/25 mm2 connector)
1x Cable with electrode holder (2 metres) 16mm2 (10/25 mm2 connector)

favorite_border favorite

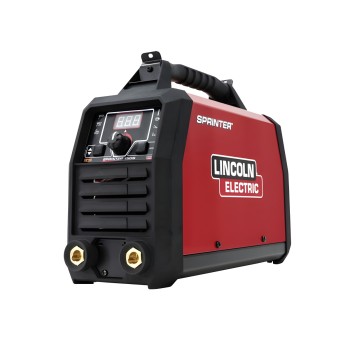

LINCOLN - SPRINTER 180-S|MMA Welding Machine

In stock

Lincoln Electric

Reference: K14437-1

LINCOLN - SPRINTER 180-S|MMA Welding Machine

7,673.52 kr

6 138,82 kr tax excl.

Free delivery

2-year warranty

The advantages of the Lincoln Sprinter 180-S:
Even more powerful. Ideal for intensive work
High duty cycle at 180 A – 35% at 40°C
Welds rutile, basic and cellulosic electrodes from 1.6 to 4.0 mm diameter
Open circuit voltage of 95V!
Multi-process: MMA welding and Lift TIG
Technologies: PFC, Soft Arc, Hot Start, Arc Force
Weight: 8.4kg - Dimensions 162x305x438mm
3-year warranty
Delivered without accessories

favorite_border favorite
TELWIN - Advance 227 XT MV/PFC VRD | MMA Inverter Welding Unit
Save 30%

In stock

Telwin

Reference: 816249

TELWIN - Advance 227 XT MV/PFC VRD | MMA Inverter Welding Unit
(2 reviews)

6,911.85 kr

9,874.07 kr

5 529,48 kr tax excl.

Free delivery

2-year warranty

Key features of the Telwin Technology 227XT MV/PFC VRD welder:
Multivoltage: compatible with all voltages (100/120V, 200V, 220/240V)
MV/PFC - maximum performance from a 230V 16A outlet
Welds rutile, basic, stainless steel and cast iron electrodes
Digital display
Higher power output for intensive use (40°C): 200A @30%
Ideal for demanding situations and harsh environments
Designed to withstand impacts: anti-shock protection and metal handle
Two welding processes: MMA / Lift TIG
Generator compatible
Compact and powerful: 10–200A single-phase (230V)
Technologies: Inverter, PFC, VRD, Arc Force, Hot Start, Anti Stick
Supplied in a carry case
Made in Italy
2-year warranty

This unit is supplied in a carry case and includes:

1 electrode holder + cable (length 3m, cross-section 25 mm²) Ø 50
1 ground clamp + cable (length 2m, cross-section 25 mm²) Ø 50
1 power cable with plug, length 2m, no plug
