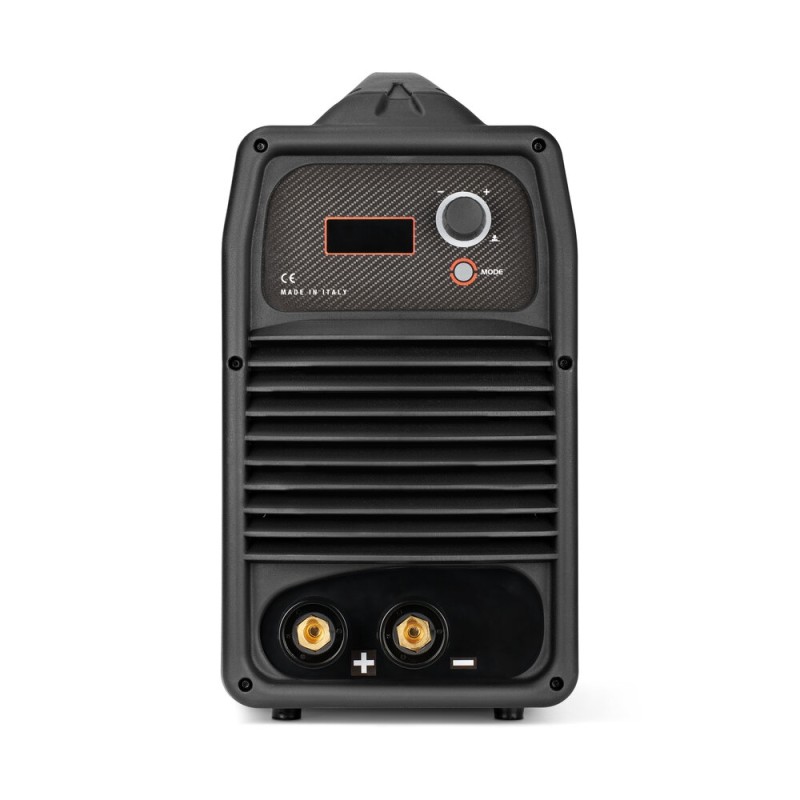

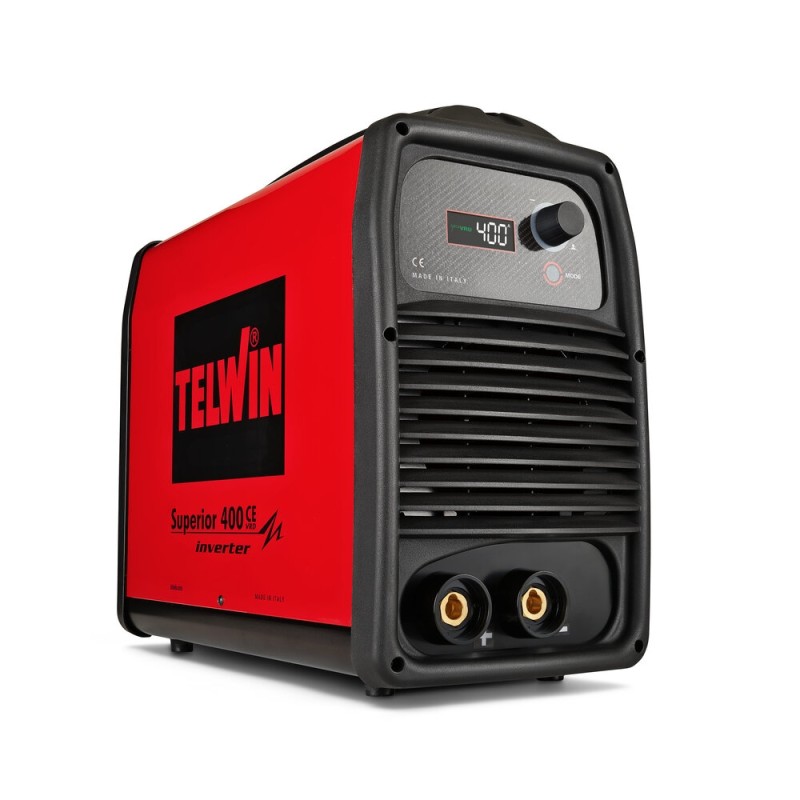

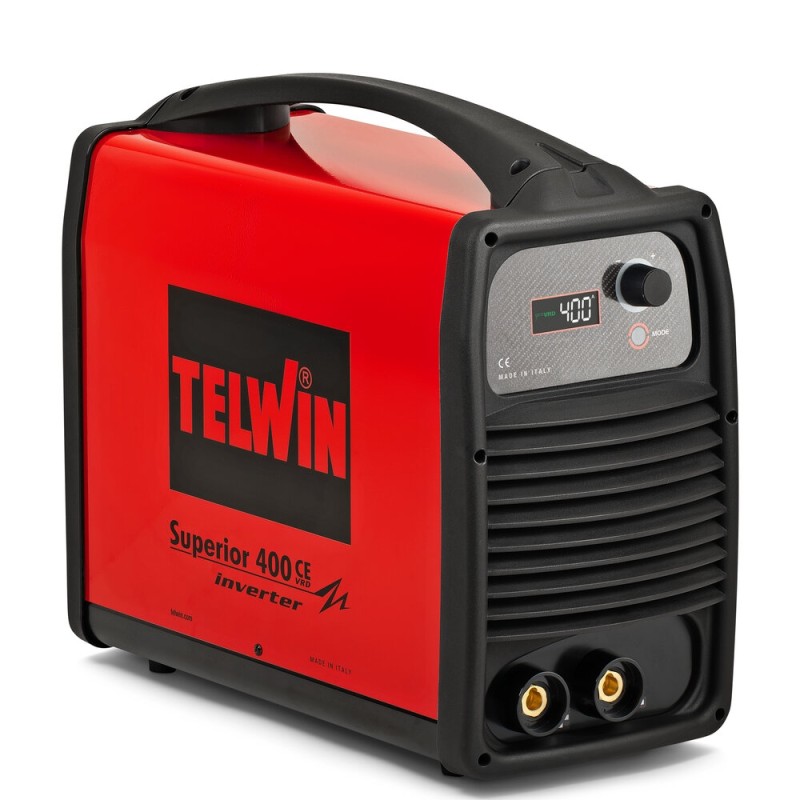

Key features of the Telwin Superior 400 CE VRD welding machine:
Gouging function
Duty cycle: 400A @40%
Welds carbon cellulosic, aluminium, rutile, basic, stainless steel and cast iron electrodes
Robust and easy to set up with its digital display
Two welding processes: MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
18 416,39 kr tax excl.
Key features of the Telwin Superior 400 CE VRD welding machine:
Gouging function
Duty cycle: 400A @40%
Welds carbon cellulosic, aluminium, rutile, basic, stainless steel and cast iron electrodes
Robust and easy to set up with its digital display
Two welding processes: MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Description
Multi-process inverter welding machine for MMA electrode, TIG-LIFT in direct current (DC) and with a gouging function.
Designed for welding cellulosic electrodes and coated electrodes of the aluminium, rutile, basic, stainless steel, cast iron type.
Electrode welding can be performed in both direct current and pulsed current. Pulsed mode (MMA Pulse) is recommended with cellulosic and basic electrodes and for positional welding. It is possible to configure both pulsation currents and their duration for reduced heat input and better arc control. Fewer spatter and restarts, better weld bead quality.
Availability of the gouging function (GOUGING) with the use of carbon electrodes.
Designed to guarantee long-term reliability, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Characteristics of TELWIN - MMA SUPERIOR 400 CE VRD TRIPHASE
| Supply voltage (in Volts) | 230 / 400 3 Ph - Volt 50-60 Hz | Fuse (in Amperes) | 25 A, 20 A |
| MMA power range (in Amperes) | 30 -400 A | Duty cycle at 40°C MMA | 300 @ 40% / 400 @ 40% A |
| Open circuit voltage (in Volts) | 100 | Possible electrode type | Rutile - stainless steel/cast iron - basic, Rutile - basic - cellulosic |
| Generator compatible | Yes | Welding process | MMA / TIG LIFT |
| Warranty | 2 years | Dimensions (in mm) | 530 X 240 X 450 |
| Weight in kg | 19.5 | Protection rating | IP23 |
| Usage | Industry | Gouging Mode | Yes |
| Max MMA Power | 400 A Max |
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
Supplier stock
ESAB
Reference: 0700500250
18,404.85 kr
14 723,88 kr tax excl.
Free delivery
2-year warranty
MMA and TIG welding
Special 6010 mode for controlling cellulosic electrodes
Maximum power: 250A at 40%
Welding current 10-250 A
Power supply 400 V three-phase
Open circuit voltage 81 VDC
Protection class: IP23S
Dimensions: 477 x 188 x 360 mm
Supplied with 3m ground cable, 3m electrode holder and 2.5m power cable (without plug)
Supplier stock
Gys
Reference: 082762
13,673.79 kr
10 939,03 kr tax excl.
Free delivery
2-year warranty
Three-phase MMA / TIG DC Lift generator
Duty cycle: 300A @ 60%
Current range: 20 - 300 A (400V)
Welds cellulosic, aluminium, rutile, basic, stainless steel, cast iron electrodes up to Ø 6 mm
Arc gouging with carbon electrode (up to Ø 5 mm)
Robust and easy to adjust with digital display
IP23 for outdoor use
Reinforced housing
Technologies: Arc Force, Hot Start, Anti Stick, SR and VRD
Open circuit voltage 83V
Weight: 26kg
2-year warranty
Delivered without accessories
In stock
Telwin
Reference: 816039
9,173.54 kr
10,192.82 kr
7 338,83 kr tax excl.
Free delivery
2-year warranty
Key features of the Telwin Superior 250 Tri welding machine:
High efficiency: 220A @25%
Welds rutile, basic, stainless steel and cast iron electrodes
Compact and lightweight (8.4 kg)
Robust and easy to adjust with potentiometer
Two welding processes: MMA / Lift Contact
Current range: 10 - 250 A
Technologies: Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Delivered without accessories
Supplier stock
Lincoln Electric
Reference: K14242-1
28,270.72 kr
31,411.91 kr
22 616,58 kr tax excl.
Free delivery
2-year warranty
Duty cycle 270A @ 25%
400V ±15%, 3Ph 50/60Hz
Generator compatible
Lightweight: only 14.3 kg
Low standby power consumption below 19W and efficiency>85%
Manual and synergic MMA – Pulsed
Fan on demand (Intelligent F.A.N.)
VRD (Voltage Reduce Device)
Ability to weld cellulosic electrodes
3-year warranty
Supplier stock
ESAB
Reference: 0447100881
27,624.56 kr
30,693.95 kr
22 099,65 kr tax excl.
Free delivery
2-year warranty
MMA and TIG welding + DC gouging
Maximum power: 400A at 60% and 310 A at 100%
Welding current 10-410 A
Power supply 400 V three-phase
Protection class: IP23S
Dimensions: 525 x 280 x 475 mm - Weight 35kg
Supplier stock
Telwin
Reference: 816036
17,804.73 kr
14 243,78 kr tax excl.
Free delivery
2-year warranty

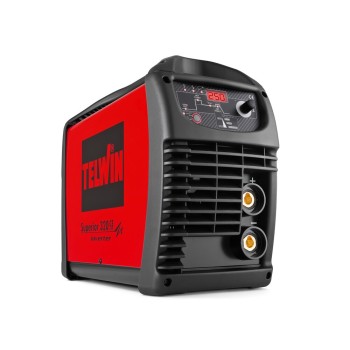

The advantages of the Telwin Superior 320 CE VRD welding machine:
Duty cycle: 270A @35%
Welds cellulosic, aluminium, rutile, basic, stainless steel, cast iron electrodes
Robust and easy to adjust with its digital display
Two welding processes: VRD / MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
Delivered without accessories
Key features of the Telwin Superior 400 CE VRD welding machine:
Gouging function
Duty cycle: 400A @40%
Welds carbon cellulosic, aluminium, rutile, basic, stainless steel and cast iron electrodes
Robust and easy to set up with its digital display
Two welding processes: MMA / Lift TIG
Current range: 10 - 270 A (400V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Made in Italy
2-year warranty
