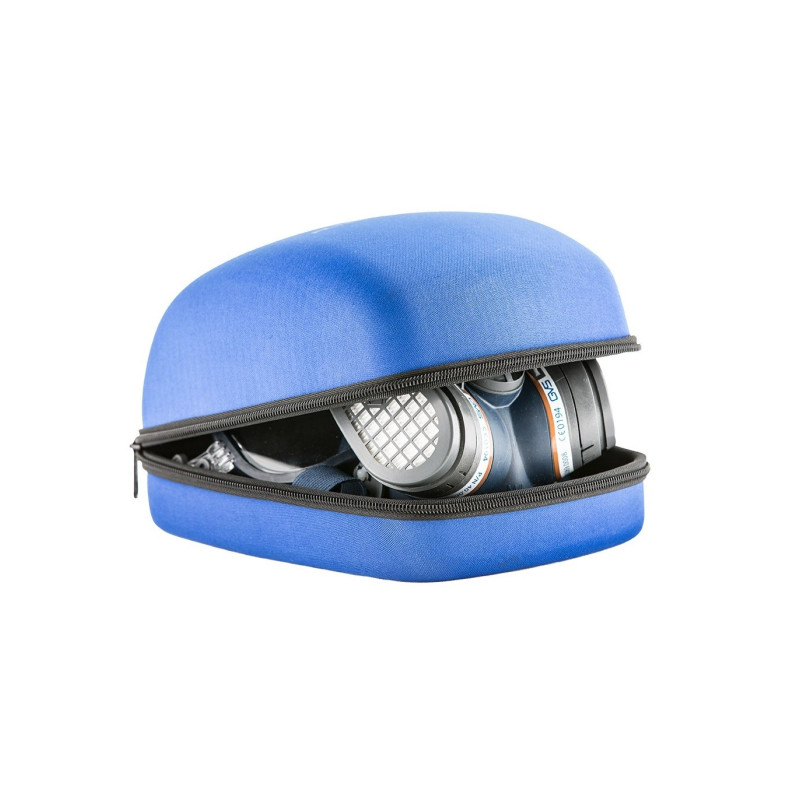

GVS - Storage case for INTEGRA Luxe P3 respiratory mask

The extraction kit, consisting of a flexible suction arm with a length of 2 to 4 m and a fan, is a particularly simple and cost-effective solution when air filtration is not essential. It is suitable for large quantities of fumes and dust such as welding fumes, gases, vapours, light dust or vehicle exhaust gases in continuous use.

It features a 360° adjustable hood with a flow rate control valve.
Internal load-bearing structure with double parallelogram and compensation springs.
Rigid aluminium pipe with epoxy coating - 3 flexible sections at the joints
Silumin aluminium cast housing and fan, spark-proof

Suction capacity: 1000 m³/hour
Maximum fan capacity: 2000 m³/hour
Motor power: 0.75 kW with 2 and 3 m duct and 1.1 kW with a 4 m duct (2.2 kW motor available on request)
Connection voltage: 3 x 400V/50Hz (single-phase kit available on request)
Noise level: 73 dB(A)
Radial-type fan.
Suction arm diameter: 150 mm.

The kit includes:
The fan
The suction arm with hood
The wall bracket
1 motor protection circuit breaker
1 connection hardware kit
1 discharge hose, supplied at a length of 1.25 m extendable up to 5 m and a wall outlet.

Pack of 5 foam nose protections for SWISS AIR half mask

Storage and protective case for the SPR668 and SPR669 welding smoke and gas respiratory mask by GVS

SmartFil is a mobile welding fume filtration unit for regular use in welding applications with average quantities of fumes and dust.
The disposable filter of the extraction unit has a particularly high filter surface area of 25 m² and is replaced without any contamination when saturated.
SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.
This unit holds IFA-W3 certification

This welding fume extraction unit is offered with an arm length of 2, 3 or 4 m and in single- or three-phase power supply.

The articulated arm is made of lacquered aluminium tubing, offering better resistance to welding spatter, and features 360° rotation including the hood.
Unit fitted with a particulate filter - 2 filtration levels.
SCF System - Filter change without risk of contamination

Suction power: 1,100 m³/hour
Filtration surface area: 25 m² (original) - This can be increased to 42 m² by replacing the original filter (filter available as an option on the site).
SCF System - Filter change without risk of contamination and filter saturation monitoring device
Unit weight: 131 kg (without arm)
Noise level: approx. 70 dB(A)
Separation efficiency: ≥ 99.5%
Dimensions: 79.5 x 83.6 x H 117 cm

We offer this fume extractor in single-phase (1 x 230 V - 50 Hz) or three-phase (3 x 400 V - 50 Hz) version.
You must choose the power supply and the arm length when ordering, as 3 options are available.

All accessories allowing you to extract welding fumes outside your premises are available below.

This mask fits perfectly to the face and does not interfere with other visual or hearing protection.

It features

• a non-return valve to reduce breathing resistance and the formation of condensation
• A fixing strap to prevent slipping on the face.

It provides maximum protection against vapours, dust, metal fumes, oil and water mist, odours and micro-organisms with a minimum efficiency of 99.95%.

The materials used in the manufacture of the mask and filters are hypoallergenic, odourless, of medical quality and free from latex and silicone.

SmartFil is a mobile welding fume filtration unit for regular use in the welding field with average quantities of fumes and dust.
The disposable filter of the extraction unit has a particularly high filter surface area of 25 m² and is replaced without any contamination when saturated.
SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.
This unit holds IFA-W3 certification

This welding fume extraction unit is offered with an arm of 2, 3 or 4 m in length and in single- or three-phase power supply.

The articulated arm has a 360° rotation including the hood.
Unit fitted with a particulate filter - 2 filtration levels.
SCF system - Filter change without risk of contamination

Its suction power is 1,100 m³/hour
Filter surface area 25 m² as standard - This can be increased to 42 m² by replacing the original filter (filter offered as an option on the site).
SCF system - Filter change without risk of contamination and filter saturation monitoring device
Unit weight: 131 kg (without arm)
Sound level: approx. 70 dB(A)
Separation efficiency: ≥ 99.5%
Dimensions 79.5 x 83.6 x H 117 cm

We offer this fume extractor in single-phase (1 x 230 V - 50 Hz) or three-phase (3 x 400 V - 50 Hz) versions
You must choose the power supply and arm length when ordering, as 3 options are available.

All the accessories allowing you to extract welding fumes to the outside of your premises are available below.

2 replacement HESPA filters for gas and fume half-face respirator mask

• Gas and Vapor Filters: Activated carbon in an ABS shell.
• Particulate Filters: Mechanical HESPA type synthetic filter media with a molded and encapsulable TPE insert. Particulate filters are integrated into the carbon element.

Particle pre-filter for gases and vapours for SWISS AIR respiratory mask with ABE1P filter
This pre-filter is to be used with the SWISS AIR pack reference 4700.014 available on our site.

This mask fits the face perfectly and does not interfere with other visual or hearing protection.
Size M/L

It features

• an anti-return valve to reduce breathing resistance and the build-up of condensation
• A fixing band to prevent slipping on the face.

Field of Vision

- Polycarbonate visor designed to withstand impact at speeds up to 45 m/sec.
- Anti-scratch and anti-fog treatment.

It provides maximum protection against vapors, dust, metal fumes, oil and water mists, odors and microorganisms with a minimum efficiency of 99.95%.

The materials used in the manufacture of the mask and filters are hypoallergenic, odorless, medical grade, and free from latex and silicone.

Mask weight 209g.

Fields of application

Shipyards, mining operations, steelworks, foundries, cement plants, glassworks, mechanical, pharmaceutical, ceramic, chemical and textile industries.

Protective mask against welding fumes and odors.
Compared to the other mask available on our site, this mask features an activated carbon filter to contain odors, hence the black color of the valve.
It fits easily under your welding helmet and adapts to the shape of your face thanks to its adjustable strap.
This mask offers high respiratory protection of the FFP3 type; it features a surface micro-mesh that prevents clogging of the filter material and liquid absorption, extending its service life.

On its inner face, it features a full facial seal to fit correctly against your face and ensure better protection.

This disposable mask, for personal use, can be used multiple times depending on the duration of your welding operations and the environment in which they are carried out.

It is ideal for occasional welders who want to protect themselves from welding fumes without making a significant financial investment.
For professional or heavy use, however, you should opt for another type of protection such as a powered air-purifying respirator helmet or a fume extractor.

These consumables are compatible with the welding helmets whose references and models are listed below
For any other model and reference, please enquire before ordering.

Gysmatic True Color reference 065727
Gysmatic 5 / 13 True Color XXL reference 047846
Pantera Air-Systèm SACIT.

Available consumables:

SPL000380 TH 2 filter
SPL000386 TH 3 filter
SPL000381 Pre-filter (pack of 5 pieces)
SPL000382 Spark and coarse dust guard

TH3 filter and pre-filter for respiratory mask:
- GYSMATIC 9/13 AIR TRUE COLOR XL (ref. 065727)
- GYSMATIC 5/13 AIR TRUE COLOR XXL (ref. 047846)

This filter must be used in conjunction with the pre-filter and the spark guard

Filter type: TH3 P R SL

Recommendation:
The filter lifespan is 12 months. During intensive use of the respiratory protection system, periodically check the filter for clogging and replace it if necessary before the end of the 12 months.

The particulate filter complies with Regulation (EU) 2016/425.

• The TH3 particulate filter has been designed and manufactured to meet the requirements of standard EN 12941:1998+A2:2008 with a TH3P R SL classification.

This filter can only provide this level of protection when used with the complete GYSMATIC AIR respiratory protection system.

This mask fits the face perfectly and does not interfere with other visual or hearing protection

It features

• a check valve to reduce breathing resistance and the build-up of condensation
• A fixing band to prevent slipping on the face.

It provides maximum protection against vapours, welding gases, dust, metal fumes, oil and water mist, odours and micro-organisms with a minimum efficiency of 99.95%.

The materials used in the manufacture of the mask and filters are hypoallergenic, odourless, of medical quality and free from latex and silicone.

• Gas and Vapour Filters: Activated carbon in an ABS shell.
• Particulate Filters: HESPA type mechanical synthetic filter media with a moulded and encapsulable TPE insert. The particulate filters are integrated into the carbon element.

Its use is notably possible in the environments listed below:

Construction: Painting - moulding
Welding: Fumes and dust, welding gases
Manufacturing: Solvents, various organic gases
Agriculture: Pesticides
Car and ship repair: Epoxy, paint, solvents

Powered air purifying respirator mask with TH3 P R SL filtration system
The EuropurePLUS™ 5500 LS is an intelligent powered air purifying respirator system with filtration. It features an integrated flip-up lens for grinding, side windows, an extra-large auto-darkening lens and our Light Shade (LS) Technology.

Adjustable airflow from 170 to 210 litres/minute
Battery life: 5 to 9 hours depending on airflow setting
Battery charge time: 1 hour
Particle and aerosol filtration: P3 - Protects against particles related to dust and welding fumes
Visual, audible and vibrating alarms for additional safety
PAPR certification EN 12941 TH3 P RSL

this helmet requires 2 cr2450 batteries for the cell to function.

In addition to the Europure Plus 5500LS powered air purifying respirator mask, the following are included:
5 outer protective screens and 2 inner protective screens
1 side window cover kit
2 Pre-filters and 2 Filters – 2 pieces
1 Lithium battery
2 Spark guards
1 Battery charger
1 Hose with protection
1 Head cover
1 Shoulder straps
1 Airflow indicator
1 Carrying bag
1 Bandana
1 Sticker sheet

2 CR2450 batteries

Warranty period: fan: 1 year
Auto-darkening cell: 2 years

Particulate filter for SWISS AIR respiratory half-mask

The GYSMATIC 5/13 AIR TRUE COLOR XXL is a welding mask equipped with a powered air-purifying respirator system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's respiratory tract.

• The XXL screen provides an optimal field of vision.
• True Color technology guaranteeing incredible color accuracy during welding.
• The 9 available shades (5> 13) adapt to all welding operations. It offers the possibility of TIG welding from 2 A.
• The 4 solar sensors guarantee very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to need (from 170 l/min to 230 l/min).
• The lithium battery allows up to 8 hours of autonomy.
• The filter rated TH2PRSL retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with powered air-purifying respirator system, lithium battery, EU charger, harness, flow meter and carry bag.
