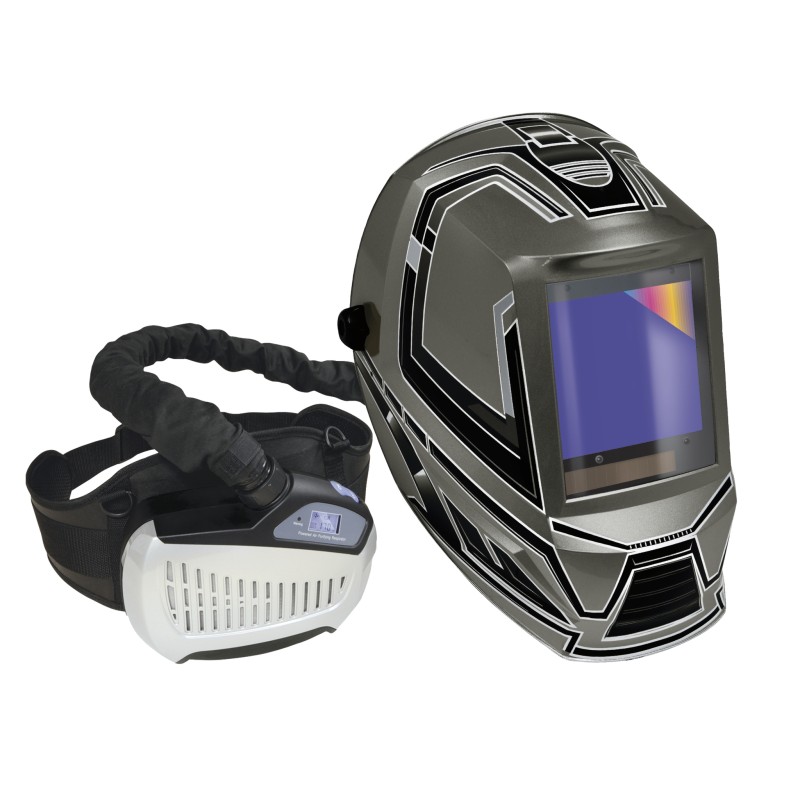

GYS - Gysmatic 5/13 True Color XXL respiratory welding mask

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

This auto-darkening welding helmet features 4 sensors with an integrated grinding screen with anti-fog coating
Operates with 2 CR 2450 lithium batteries. Equipped with a diode indicating the battery level.
Vision area: 75 x 108 mm.
Light/dark switching time: 0.000004 ms
Dark/light switching time: 10 positions from 0.1 to 1 second.
Sensitivity adjustment via digital button: 10 positions.
Adjustable shade from 9 to 13 for welding, from 5 to 8 for cutting.
Suitable for low-amperage TIG welding, microplasma, and oxy-acetylene welding

 Lincoln Electric's exclusive 4C technology liquid crystal display (LCD) increases the spectrum of visible colors. Unlike the traditional auto-darkening filter, 4C® technology broadens the range of visible colors and shades whether the light is diffuse or dark. It eliminates imperfections and color saturation, allowing you to clearly see the material being welded, the arc and the weld pool, while reducing eye fatigue.

3-year warranty.

Optical class 1/1/1/1
Weight 793 g

Supplied with:
5 outer protective lenses
2 inner protective lenses
1 sweatband
1 helmet cover
1 bandana

The Sentinel A60 Air welding helmet builds on the innovations of the standard Sentinel A60, taking welding to the next level. A wide panoramic view and excellent 1/1/1/1 EN optics provide an even wider view of the weld pool without any distortion.

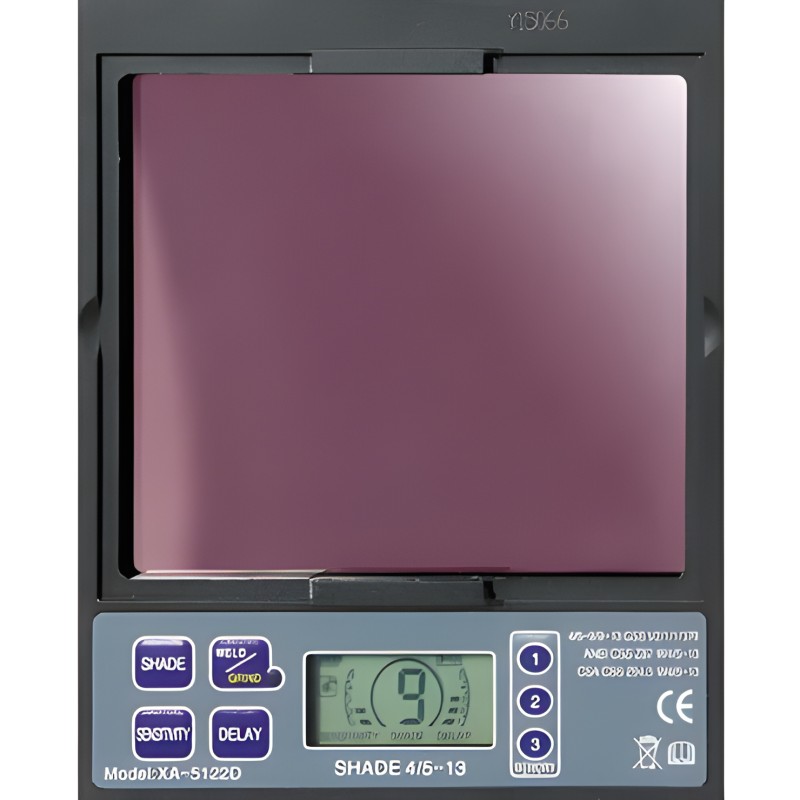

The redesigned auto-darkening filter (ADF) features the new light control technology
with broad-spectrum OpTCS ™ from ESAB. This offers an enhanced True Color vision mode, for less eye fatigue as the working day becomes more demanding. New shade adjustment settings in 0.5 increments allow more precise vision control.

The outer shell retains Sentinel's signature design and integrates a new air diffuser screen.
The fully adjustable Halo ™ internal headband and the external grinding mode button complete the most comfortable and highest-performing lenses ever produced by ESAB.

- ADF viewing area : 118 x 71 mm (4.65 x 2.80 inches)
and intuitive ADF controls, including sensitivity and delay
- Light state range: DIN 3 / 5 – 13, adjustable in 0.5 increments and ADF with adjustable setting
- ESAB OpTCS technology with True Color Lenses
- 9 programmable memory slots
- Arc sensors: 4
- Fast switching time of 0.08 milliseconds - Battery CR2450 replaceable
- Low battery LED, grinding mode LED grinding and shade lock LED

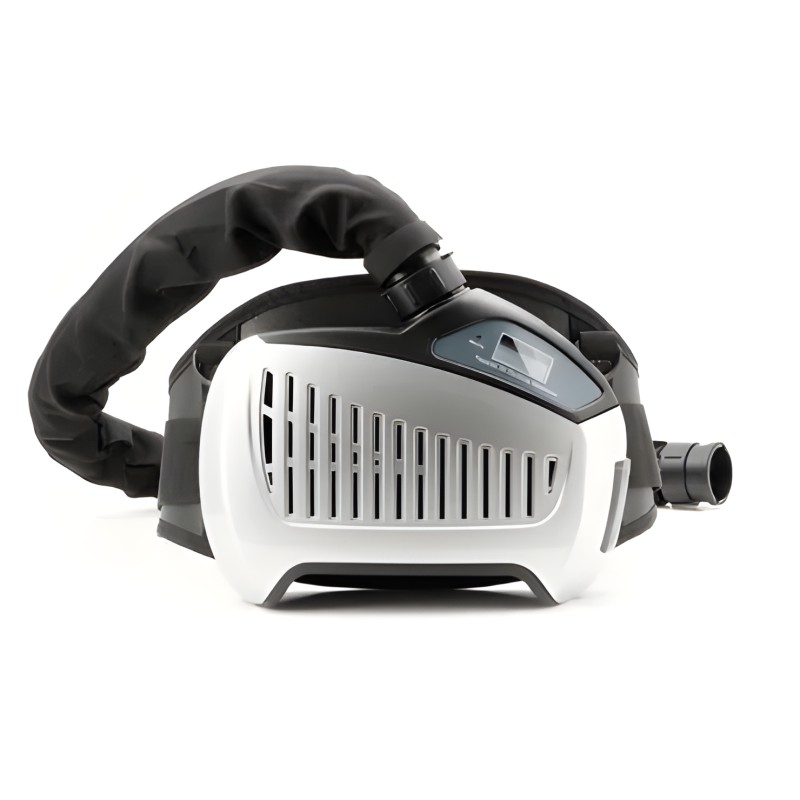

The EPR-X1 respiratory system allows you to adjust the airflow with a simple press of a button, enabling adjustment of the flow through the P3 filter from 170 to 220 litres per minute . The system informs the user of the need to replace the filter by emitting an audible signal. The lithium-ion battery lasts up to 10 hours at 170 l/min.

The ESAB EPR-X1 PAPR unit seamlessly connects to all current ESAB PAPR welding helmets and provides advanced respiratory protection against harmful welding fume particles.

This PAPR is designed for applications ranging from occasional use to full-time industrial applications. The EPR-X1 has a robust and compact structure with a powerful fan to ensure maximum lifespan and performance. Check the battery status, fan settings and filter conditions at a glance thanks to the quick-access LED status indicators. In addition, the PAPR provides audible and vibrating alerts to inform the welder of low airflow (indicating the need to replace the filter) and low battery conditions.

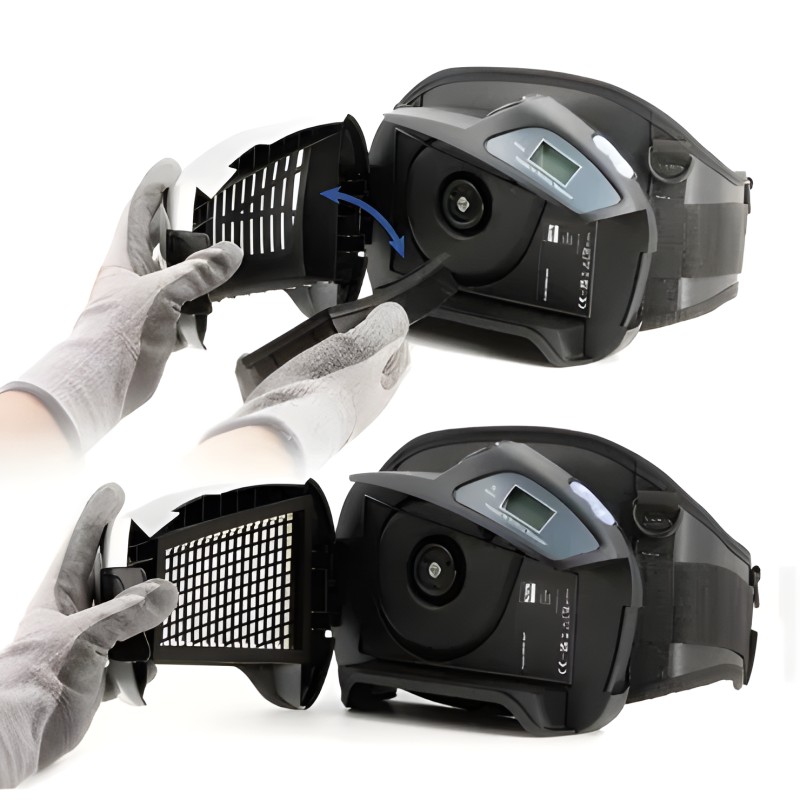

The EPR-X1 turbo unit is controlled by easily accessible buttons with which three airflow speed ranges can be set: 170/190/220 l/minute. The spark arrestor and the two-stage EN12941 TH-3P certified HEPA filter are easily accessible through a removable front door.

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRYING BAG.

Automatic wide-screen welding helmet Black colour XL field of view: 100x50mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 2 replaceable CR2450 batteries Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply: 2 x 3V batteries CR2032.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
EN 379 classification of this model: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Included:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 Replacement outer protective cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on the website www.optrel.com.

LCD WELDING MASK

Essential for safety, the GYSMATIC TRUE COLOR XXL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the tinted state in a fraction of a second, from the moment the arc is struck. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 - True Color Technology
Classification: 1/1/1/1
Viewing area: 100 x 83 mm
Reaction time: 0.10 ms
Settings: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 680 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:

Outer lens 114 x 133 mm (reference 043893)
Inner lens 106 x 89.5 mm (reference 046825)

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This pack includes:

1 Panoramax clt black welding helmet
1 SWISS-AIR respiratory protection system with control panel including half mask + tubes + head and neck strap.
1 Blower unit + charger
1 shoulder harness
1 storage bag

2 sweatbands are available

Front headband (front of the headband) reference 20-3100V 17
Length 17 cm x 2.5 cm wide.

Rear headband reference 203300V
Length 14 cm x 2.5 cm wide

Welding helmet with powered air-purifying respiratory protection Protects eyes from IR/UV and the operator's respiratory tract Optimum field of view 75x112mm True-Color Technology - Optical class 1/1/1/1 Lithium battery life of approximately 8 hours - Charging time 1h 3 adjustable airflow rates to suit requirements (from 170 l/min to 230 l/min) 4 solar sensors for very high sensitivity and ultra-fast reaction time (0.08 ms) Fixed light shade: DIN 3 Variable dark shade DIN 9/12-13/15 Digital controls Grinding mode The filter is rated TH3 and retains 99.996% of welding particles Standards EN 166 / EN 175 / EN 379 / EN 12941 Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter Weight 5 kg

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.
