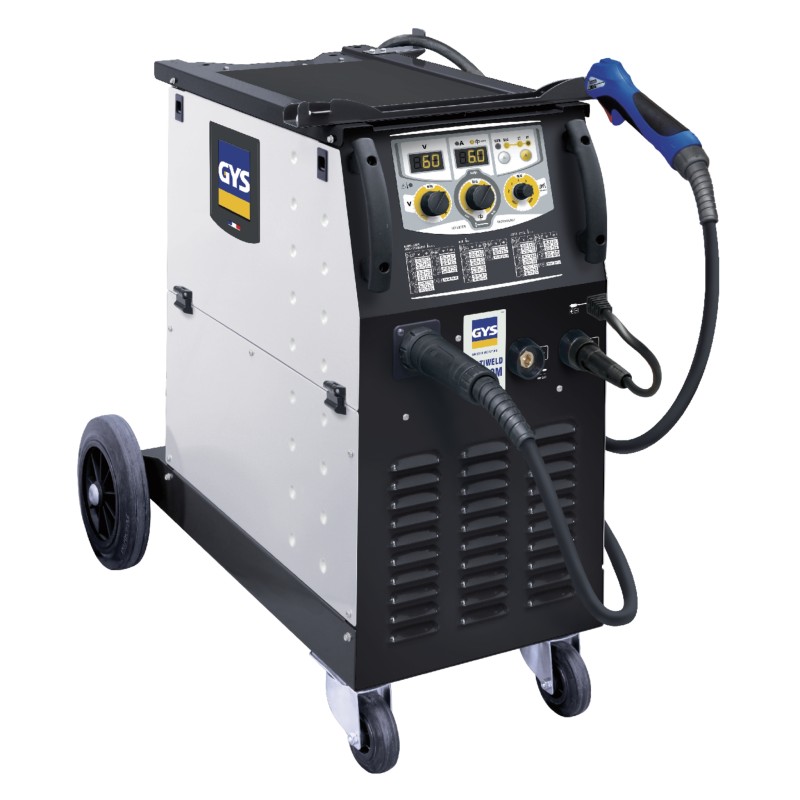

GYS - MULTIWELD FV 220M welding machine
  • GYS - MULTIWELD FV 220M welding machine
  • GYS - MULTIWELD FV 220M welding machine

Wheeled generator
Welds steel, stainless steel and aluminum
MIG duty cycle: 160A at 60% / 120A at 100%
MMA duty cycle: 140A at 60% / 100A at 100%
Amperage range: 30 to 220A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1 mm and aluminum 0.8 to 1 mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.1 mm)
- MMA (basic and rutile electrodes up to 5 mm) with Anti-stick function
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable 250A MAG torch (2T/4T) 3 m (8 mm contact tip)

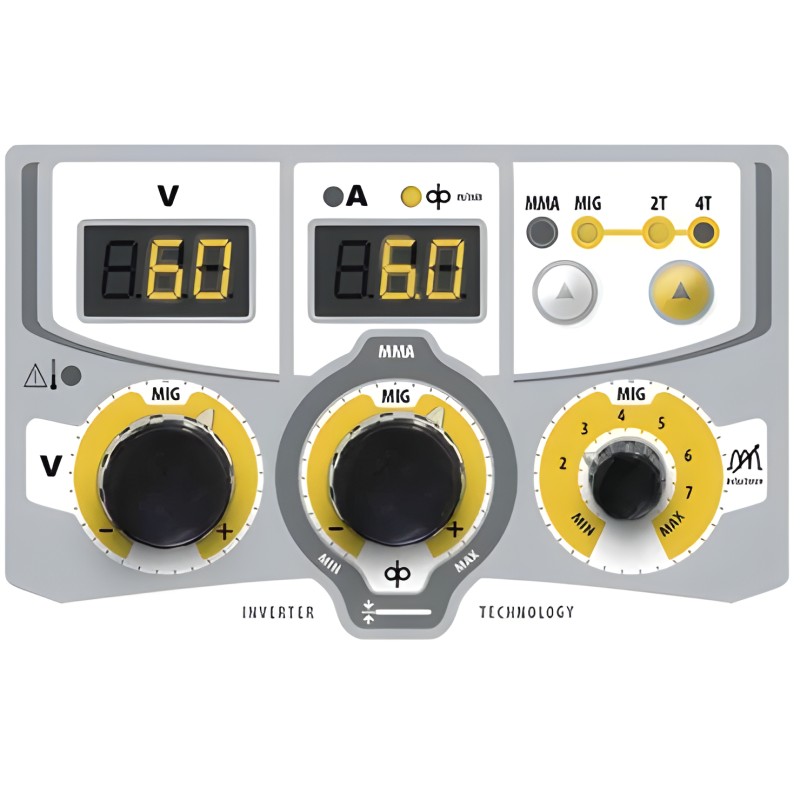

Digital interface with highly intuitive settings
Compatible with 9 kVA generator
Gas cylinder support for cylinders up to 4 m³
Single-phase 230 V - 16 A power supply
Dimensions: 77 x 79 x 47 cm - 32 kg
IP23 rating for outdoor use
Accepts long extension cords (100 m)

Included in the box:
1x 250A torch 3 m
1x ground clamp 2.5 m 25 mm²
1x electrode holder 2.5 m 25 mm²
User manual included

Reference: 065482

GYS - MULTIWELD FV 220M Welder

Gys
(3 reviews)
By purchasing this product you will earn 0 € thanks to our loyalty program. Your cart will total 0 €.
favorite_border favorite

Based on 3 reviews

See the reviews
13,719.90 kr

10 975,92 kr tax excl.

In stock
Shipping within 24h
Delivery in 24-48h
A question about this product? Characteristics Accessories The technical data sheet The manual

Wheeled generator
Welds steel, stainless steel and aluminum
MIG duty cycle: 160A at 60% / 120A at 100%
MMA duty cycle: 140A at 60% / 100A at 100%
Amperage range: 30 to 220A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1 mm and aluminum 0.8 to 1 mm)
- MIG/MAG gasless (flux-cored wire Ø 0.9 to 1.1 mm)
- MMA (basic and rutile electrodes up to 5 mm) with Anti-stick function
4 drive rolls for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable 250A MAG torch (2T/4T) 3 m (8 mm contact tip)
Digital interface with highly intuitive settings
Compatible with 9 kVA generator
Gas cylinder support for cylinders up to 4 m³
Single-phase 230 V - 16 A power supply
Dimensions: 77 x 79 x 47 cm - 32 kg
IP23 rating for outdoor use
Accepts long extension cords (100 m)

Included in the box:
1x 250A torch 3 m
1x ground clamp 2.5 m 25 mm²
1x electrode holder 2.5 m 25 mm²
User manual included

-20%

Buy a welding machine and get 20% off all consumables on the site

By purchasing this product you will earn 0 € thanks to our loyalty program. Your cart will total 0 €.

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer
A question about this product?

Characteristics of GYS - MULTIWELD FV 220M Welder

Supply voltage (in Volts) 50 / 60 Hz - 230 Volts Fuse (in Amperes) 16 A
MMA power range (in Amperes) 30 - 200 MIG welding adjustment range (in Amperes) 30 - 220 A
Duty cycle at 40°C MMA 140 A@60% - 100 @100% MIG-MAG duty cycle at 40°C 160 A@60% - 120 @100%
Open circuit voltage (in Volts) 75 Possible electrode type Rutile - basic
Usable rutile electrode diameter (Ø) for the unit (in mm) From 1.6 to 5 mm Ø basic electrode usable by the unit (in mm) 2 to 5 mm
Uses spools of diameter Ø200 and 300mm
Ø200 and Ø300mm		 Uses steel wire diameter 0.6 to 1 mm
Uses stainless steel wire diameter 0.8 - 1 mm Uses aluminum wire diameter 0.8 to 1 mm
Uses flux-cored wire (gasless) diameter 0.8 mm - 0.9 mm - 1.2 mm Uses CuSi3 - CuAL (Brazing) wire diameter 0.8 - 1 mm
Ventilated Yes Overvoltage thermostatic protection Yes +/- 15 %
Nature of materials to be MMA welded Steel - Stainless steel - Cast iron Generator compatible yes +/- 15% voltage variation
Welding process MMA - MIG Warranty 2 years
Dimensions (in mm) 770 x470 x 790 Weight in kg 42
Number of drive rolls 4 rollers Protection rating IP23
Suggested generator power 9kW Usage Professional
Professional
Synergy No
