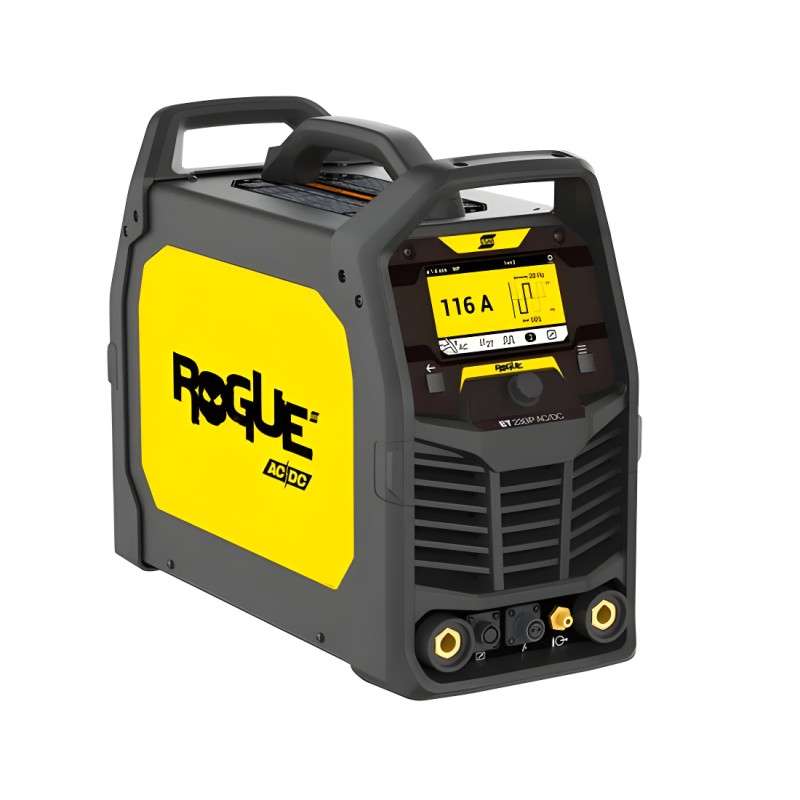

ESAB | ROGUE ET230iP AC/DC

Sprinter 200 T

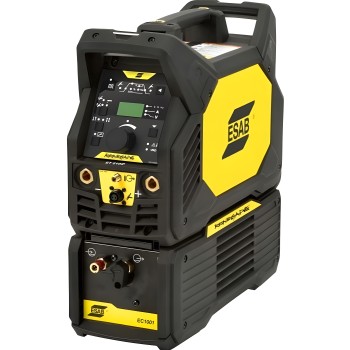

This ESAB Renegade ET 210iP is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with IP23 protection rating, capable of being used even in the most demanding environments.

Thanks to its light weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210iP is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or if an extension lead is used (length up to 100 m).

Easy to use. It provides direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron electrodes... and also cellulosic ones.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power supply cable, up to 100 m

- Intuitive panel, quick to configure, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general fabrication
Mining
Steel formwork

Supplied with:
1 earth clamp + 25 mm² cable length 3 m - 13 mm connector
1 strap for carrying the machine on the shoulder when working at height + anchor points for lifting.
1 TIG torch SR-B 26 length 4 m
1 gas hose length 4 m

Electrode holder optional

The Minarc TIG 200 EVO features high-frequency arc ignition, ensuring reliable performance across a wide variety of welding tasks.
Ideal for light construction, installation, repair and maintenance applications.

This unit features an LED display.
Precise arc ignition from 5A.
Duty cycle: 200 A @ 35%.
Pre-gas and post-gas adjustment
Compatible with generator use.

It is supplied with:
1 type 26 torch reference Kemppi TX 225, 8 m long - leather sleeve finish. Supplied with a GR6 gas nozzle, an electrode holder + gas diffuser and a grey cerium tungsten electrode Ø 2.4 mm
1 ground clamp + 25 mm² cable, 5 m long

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Intelligent and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on the majority of ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc).
AC Pulsed: precise control of penetration according to the AC frequency setting (pulses up to 500 Hz).
AC Mix: alternation of AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt weld (BW), Fillet weld (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for the creation of complex welding cycles

OPTIMISED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking before welding thin sheet metal.
- Tack / Multi Tack: ultra-precise tacking without oxidation reducing the risk of distortion.
3 arc start types: Lift, HF and Touch.HF (timed high-frequency arc start).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform settings favouring arc control and penetration.
E-TIG mode ensures the welder maintains the welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessories calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customisation.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double button, potentiometer and Up & Down torches.
Full machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
«FV» technology guarantees a consistently stable electric arc even in the event of variations in mains voltage (85 to 265 V), generator power supply or use of a very long power cable.

Unit supplied with:

1 Koolweld 1 cooling unit
1 earth cable LENGTH 4 M + Croco T400.70 clamp
1 TIG PRO 26B torch length 8 m.

This machine allows welding with tungsten electrodes (TIG welding) steel, stainless steel, copper, nickel ...including aluminium .

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High frequency CONTACTLESS ignition

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tacking of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and the welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function particularly suited for welding thin plates where low heat input to the workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system allowing immediate pulsed mode welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For gas connection of the machine, it is recommended to use fitting 804208.

Welding and pickling with a single TIG machine
The Minarc T223 AC/DC is a brand new single-phase 220 A TIG AC/DC welding unit with an integrated electrolytic weld pickling process.

The Minarc T223 AC/DC includes standard and pulsed welding functions as well as memory channels and remote control options.
The adjustment controls are easy to use and the large, clear colour screen features a protective cover against impacts.

The new MAX Weldclean process is simple and quick to use.
Converting the TIG torch to pickling mode takes only a few moments. Your welds are clean, ready and perfect faster.

You weld, clean the welds with a low current and a cleaning solution, then neutralise with water.

The unit comes with:
- a TX225G torch with a length of 4 m
- A ground clamp + cable

The ASPECT® 200 AC/DC is equipped with advanced TIG AC/DC functions (4 waveforms, a pulsed mode, adjustable balance and offset), making it ideal for the most demanding TIG AC or DC welding applications.
It allows welding of materials up to 6 mm thick.

It offers a simple control panel with a bright digital display for easy visualisation and control of welding parameters.
2T and 4T mode selection
Innovative adjustment system via button control from the TIG torch.
Option to adjust via foot pedal or remote control
Spot mode.
Memory mode for saving your settings
Waveform selection.

Excellent electric arc performance = » Excellent ignition, fast and stable, minimum current 2A
Device "1 Phase Buck-boost Circuit" = » Low power consumption
» Bright digital display = Easy adjustment of all parameters
» Cooling unit and transport trolley = Easy transport on site » High robustness
» Encapsulated printed circuit board and "TRUE HD" manufacturing = High robustness
» Generator compatible = Ideal for outdoor job sites
» Advanced TIG AC/DC functions = 4 welding waveforms, Pulsed mode, adjustable Balance and Offset, simple control panel, self-adjustable AC current

To be used optimally and at its maximum capacity (200A) under intensive use, this unit must be paired with a cooling unit and a water-cooled torch.
The TIG setup can be converted to a water-cooled torch setup simply by adding a COOL ARC® 24 cooling unit.

In MMA mode, this unit features the following technologies:

Hot Start: Facilitates and speeds up arc ignition by providing a current surge to prevent electrode sticking.
Anti-sticking: Automatically reduces the output current in the event of a stuck electrode.
Arc Force: Temporary increase in welding current when the arc is too short.

This machine allows welding with tungsten electrodes (TIG welding) on steel, stainless steel, cast iron, copper, nickel, and titanium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A trigger TIG torch 4 m in length + ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency NO-CONTACT arc starting

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power when an electrode is difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

(automatically adjusted by the microprocessor according to the current intensity and welding duration.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the welded workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision also improves.

THINSPOT function, enabling fast and precise spot welding.

For connecting the machine to gas, it is recommended to use fitting 804208.

This unit enables welding with tungsten electrodes (TIG welding) on steel, stainless steel, copper, nickel...including aluminium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A TIG torch with trigger, 4 m in length, plus a ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency arc starting WITHOUT CONTACT

TIG 2T/4T (manual or automatic welding)

TIG SPOT enables tack welding of parts prior to welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thereby preventing crater formation at the end of the weld bead.

ARC FORCE: This process increases amperage when the welding arc is held short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: when welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics.

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor based on the current intensity and welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function, particularly suitable for welding thin sheet metal where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system, allowing immediate welding in pulsed mode even if the welder is not accustomed to TIG welding, thanks to automatic parameter adjustment.

THINSPOT function, enabling fast and precise spot welding.

For connecting the unit to gas, it is recommended to use fitting 804208.

Rogue ET181i is a DC HF-start TIG and MMA welding machine built with the latest inverter technologies to guarantee an extremely stable welding arc, ideal for working on steel, stainless steel, brass, cast iron...

The electronic boards of the Rogue ET181i are protected by a special coating that insulates them from moisture and dust (IP23S protection). The body is very robust and the dimensions are compact in order to allow the operator to transport and use this welding machine in a workshop or on a job site even in adverse environmental conditions.

The Rogue ET181i can generate a maximum welding current of 180 A and has a duty cycle of 116 A at 60%; these characteristics make this welding machine ideal for installation, maintenance and light metalwork.

The control panel of the Rogue ET181i is easy to use and the convenient LCD screen allows the operator to accurately view the welding parameters. From the control panel, it is possible to modify the TIG welding parameters to adapt the process to the needs the operator must face: LIFT or HF trigger mode, pre and post gas, initial and final current, up and down slope, 2T or 4T.

If you use the Rogue ET181i in MMA mode for MMA welding (electrode holder optional), it is possible to select the percentage of Arc-Force and hot start that best suits the welder's operating style; furthermore, from the control panel, it is possible to select the welding mode for CELLULOSE-coated electrodes.

The Rogue ET 181i comes with:

- Instruction manual
- Shoulder strap for transport
- ESAB SR26 TIG torch 4 metres with a grey Cerium tungsten electrode Ø 2.4 mm)
- Ground cable 16mm2 cross-section - length 3 m
- Gas hose with quick connector

This machine replaces the ESAB ROGUE ET180i model and additionally features the PULSE function compared to that previous model.

The Pulse function of the Rogue allows welders to better control heat input and arc stability. The controlled pulse action helps create a stable arc, avoiding excessive spatter and minimizing the risk of weld defects or the need for post-weld cleaning. The Rogue's Pulse technology facilitates penetration and fusion in the welding process, which is essential for creating strong and durable weld beads and for ensuring the structural integrity of manufactured components. Pulse technology helps minimize the heat-affected zone, thereby reducing the likelihood of material distortion or unforeseen metallurgical changes.

Robust, the PROTIG 200 DC HF delivers high-quality welds on mild and stainless steels (TIG and MMA).
Designed for pipe fitters, boilermakers and maintenance departments, it features an intuitive interface allowing easy parameter adjustment.

Main features of this machine

1) in TIG mode.

TIG DC: DC welding for ferrous materials.
TIG DC Pulsed: limits heat build-up in the workpieces.
SPOT: fast and precise tacking before welding thin sheet metal.
2 ignition types: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with lamella and double-button torches.
AIP (Adjust Ideal Position): assists with torch positioning before welding (4T & 4T LOG modes)

2) in MMA welding (coated electrodes)

MMA: basic and rutile electrodes (up to Ø 5 mm).
MMA Pulse: developed for welding pipes/pipelines as well as for vertical upward welding positions.

Delivered with:
A TIG torch type 26, length 4 m
An electrode holder and a ground clamp: cable length 2 m - section 25 mm²

The PROTIG 200 AC/DC (200 A) is a versatile dual-process welding machine for TIG AC/DC and MMA (coated electrode) welding, in a compact and portable format. It allows joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper, magnesium or titanium). Its advanced secondary regulation ensures optimal arc stability and constant current in all positions.

5 TIG WELDING MODES

In DC mode
Standard DC: welding in direct current on the majority of ferrous materials.
Pulsed DC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.

In AC mode
Pulsed AC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.
AC Easy: simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface.

OPTIMISED TIG SETTINGS
SPOT mode (TIG DC or AC): fast and precise tacking before welding thin sheet metal.
2 types of arc starting: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with latching and dual-button torches.

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm).
Pulsed MMA: facilitates vertical uphill welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Adjustable Hot Start: facilitates arc striking and is adjusted in seconds according to the metal type
- Arc Force: momentary increase in current in difficult welding situations.

MAXIMUM PRODUCTIVITY
Memory for up to 30 programs per process.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS).
Reinforced casing with anti-shock pads.
Compact and easily movable on site.
Intelligent ventilation management to reduce power consumption, dust intake and machine noise.
Protected against overvoltages up to 400 V (PROTEC 400).

Delivered with:
1 TIG 26DB torch length 4 m, supplied with 1 Ø 1.6 electrode + 1 Ø 2.4 mm Cerium grey electrode (for stainless steel and steel welding) + A gas diffuser and an electrode holder for both tungsten electrode diameters + A GR5 ceramic nozzle and a GR7 ceramic nozzle
1 earth clamp + cable 25 mm² section length 2 m
1 electrode holder + cable 25 mm² section length 2 m

This ESAB Renegade ET 210Ip Advanced is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with IP23 protection rating, capable of being used even in the most demanding environments.

Thanks to its low weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210Ip Advanced is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or if an extension cord is used (length up to 100 m).

Easy to use. It offers direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It enables MMA welding of rutile, basic, stainless steel, cast iron... and also cellulosic electrodes.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power cable, up to 100 m

- Intuitive and quick-to-configure panel, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- 4.3-inch color screen with visual display of settings

- Easy access to up to 10 personal programs via the flashlight button

- Modular system to connect the cooling unit (optional) and the cart (optional)
without tools

Examples of application sectors
Naval and offshore construction
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Supplied with:
1 earth clamp + cable 25 mm² length 3 m - 13 mm connector
1 strap for shoulder carrying of the unit when working at height + anchor points for lifting.
1 TIG torch SR 17 length 4 m
1 gas hose length 4 m

Electrode holder optional

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated water cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension leads. In stick electrode welding, its Pulsed MMA mode facilitates upward welding.

2 welding processes possible with this unit:

-TIG DC
DC Standard: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and allows the joining of thin sheet metal from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts prior to welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal prior to welding.
2 arc ignition types:
- HF non-contact
- LIFT by contact for electrically sensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (WPS/PQR)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

MMA
MMA Standard: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical upward welding (pipe joints / pipeline…)

Product highlights
Accepts extension leads up to 100 m.
Reinforced casing and anti-shock feet.
Compact and easily portable on site.
Protected against overvoltages up to 400 V (PROTEC 400).

Unit delivered with:
1 SR20 DB torch 4 m long
1 earth clamp + cable section 25 mm² length 2 m
1 electrode holder + cable section 25 mm² length 2 m

This ESAB Renegade ET 210Ip Advanced is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with protection rating IP23, capable of being used even in the most demanding environments.

Thanks to its light weight, the various lifting points on the outer casing and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be easily transported.

Renegade ET 210Ip Advanced is equipped with an integrated active PFC circuit that allows it to be used even on a low-power supply or when an extension lead is used (length up to 100 m).

Easy to use. It offers direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It enables MMA welding of rutile, basic, stainless steel, cast iron... and also cellulosic electrodes.

Technical specifications:

- High robustness with IP23 protection rating, for use in workshops and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra-long power cable, up to 100 m

- Intuitive panel, quick to configure, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels in order to control
heat input and weld pool size

- 4.3-inch colour screen with visual display of settings

- Easy access to up to 10 personal programs via the torch button

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Delivered with:
1 EC 1001 cooling unit
1 earth clamp + 25 mm² cable 3 m long - 13 mm connector
1 strap for shoulder carrying of the unit when working at height + anchor points for lifting.
1 TIG torch Exeor SR 21, 4 m long
1 gas hose 4 m long

Electrode holder optional

The PROTIG 230 AC/DC FV is a high-performance, compact and portable TIG AC/DC and MMA welding machine, ideal for demanding work on site as well as in the workshop.

It can weld all types of materials up to 4 mm thick: steel, stainless steel, aluminum, copper, magnesium, titanium, etc. Thanks to its PFC technology, it operates over a wide voltage range (85 V to 265 V) and guarantees a stable electric arc, even with a 100-meter extension cord.

5 TIG welding modes:

- DC Standard: for ferrous metals

- Pulsed DC: limits heat buildup, perfect for thin sheets

- AC Standard: for aluminum and its alloys

- Pulsed AC: ideal for thin aluminum

- AC Easy: simplified mode with automatic settings (electrode diameter selection only)

Advanced TIG functions:

- SPOT mode: quick tacking before welding

- HF or LIFT ignition: to adapt to all environments

- Trigger controls: 2T, 4T and 4T LOG

- Automatic torch detection: compatible with flex-head and double-button torches

- Compatible with basic and rutile electrodes up to Ø4 mm

- Pulsed MMA: ideal for vertical welding (e.g.: pipework)

Integrated aids:

- Adjustable Hot Start: easier arc ignition

- Arc Force: temporary current boost for difficult welds

- Antisticking: prevents electrode sticking

Designed for productivity

- Up to 30 memorizable programs per process

- Advanced menu for precise control

- Current/voltage display during and after welding (DMOS/QMOS)

- Reinforced chassis with anti-shock pads

- Compact and easy to transport

- Smart fan: reduces power consumption, noise and dust

- Overvoltage protection up to 400 V (PROTEC 400 technology)
