TELWIN TECHNOMIG 215 DUAL SYNERGIC MIG welding machine
Save 20%
  • TELWIN TECHNOMIG 215 DUAL SYNERGIC MIG welding machine

This tri-process machine allows you to weld in MMA, semi-automatic (MIG-MAG) and TIG mode with a single unit.

MMA (electrode) and TIG welding solutions are available as options.

As standard, this semi-automatic machine has 17 programmed positions. The user simply selects the type of metal and the wire Ø. It is also possible to weld in manual mode by directly adjusting the setting parameters.

This welding machine uses spool wire for welding. This welding process allows welding of thin materials (0.6 mm).

Very practical on thin sheet metal (automotive body panels, chassis...), it avoids the weld bead restart that occurs when changing an electrode.

With the addition of a shielding gas, this machine allows welding of aluminium, stainless steel and steel in MIG-MAG and MMA mode, and steel, stainless steel and ferrous alloys in TIG mode.

Using a suitable CU Si3 type wire, it enables welding of HSS, EHS, UHS steels (automotive body panels)

MIG welding under gas shielding requires the use of pure Argon gas for welding aluminium or an Argon + CO² mixture for steel and stainless steel.

Special case: For steel, it is possible not to use gas when using flux-cored wire (this allows, for example, easier outdoor use). In this case the thickness of the steel sheets must not be less than 1 mm without risk of burn-through.

This machine uses Ø 200 mm and 300 mm wire spools (flux-cored wire in 2 kg and other wires in 5 and 15 kg). Optionally, an adapter for Ø 100 mm spools is available.

Upon delivery this machine includes:
1 Mig 180 A torch (3 metres)
1 earth clamp + 1.9 m cable.
1 roller for steel/stainless wire Ø 0.6 and 0.8 mm.
1 steel/stainless contact tip Ø 0.8 mm
1 gas hose for refillable cylinder length 1 m

TIG welding under gas shielding requires the use of pure Argon gas for welding steel, stainless steel, ferrous alloys and copper....

Optional:

It is possible to add an electrode holder with a 3 m cable in order to weld with electrodes of Ø 1.6 mm to 4 mm.

Reference KIT000514

It is possible to add a TIG torch with a length of 4 m in order to weld in TIG mode using pure Argon shielding gas.







Save with this promotion

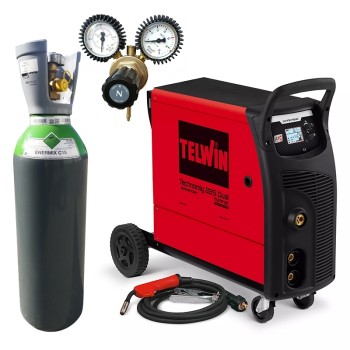

PACK: Telwin Dual 225 welding machine + Regulator + Gas

PACK: Telwin Dual 225 welding machine + Regulator + Gas

18,372.45 kr 19,258.65 kr -5% Click here
Reference: 816057

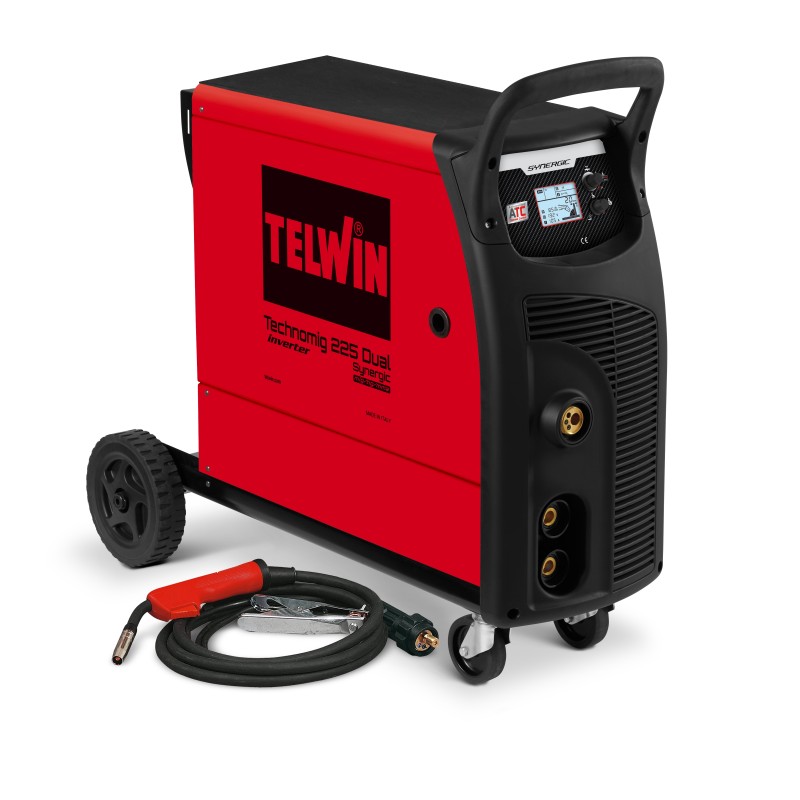

TELWIN TECHNOMIG 225 DUAL SYNERGIC | Multi-process welder

Telwin
(4 reviews)
By purchasing this product you will earn 0 € thanks to our loyalty program. Your cart will total 0 €.
favorite_border favorite

Based on 4 reviews

See the reviews
15,074.76 kr
12,059.81 kr

9 648,15 kr tax excl.

In stock
Shipping within 24h
Delivery in 24-48h

This tri-process machine allows you to weld in MMA, semi-automatic (MIG-MAG) and TIG mode with a single unit.

MMA (electrode) and TIG welding solutions are available as options.

As standard, this semi-automatic machine has 17 programmed positions. The user simply selects the type of metal and the wire Ø. It is also possible to weld in manual mode by directly adjusting the setting parameters.

This welding machine uses spool wire for welding. This welding process allows welding of thin materials (0.6 mm).

Very practical on thin sheet metal (automotive body panels, chassis...), it avoids the weld bead restart that occurs when changing an electrode.

With the addition of a shielding gas, this machine allows welding of aluminium, stainless steel and steel in MIG-MAG and MMA mode, and steel, stainless steel and ferrous alloys in TIG mode.

Using a suitable CU Si3 type wire, it enables welding of HSS, EHS, UHS steels (automotive body panels)

MIG welding under gas shielding requires the use of pure Argon gas for welding aluminium or an Argon + CO² mixture for steel and stainless steel.

Special case: For steel, it is possible not to use gas when using flux-cored wire (this allows, for example, easier outdoor use). In this case the thickness of the steel sheets must not be less than 1 mm without risk of burn-through.

This machine uses Ø 200 mm and 300 mm wire spools (flux-cored wire in 2 kg and other wires in 5 and 15 kg). Optionally, an adapter for Ø 100 mm spools is available.

Upon delivery this machine includes:
1 Mig 180 A torch (3 metres)
1 earth clamp + 1.9 m cable.
1 roller for steel/stainless wire Ø 0.6 and 0.8 mm.
1 steel/stainless contact tip Ø 0.8 mm
1 gas hose for refillable cylinder length 1 m

TIG welding under gas shielding requires the use of pure Argon gas for welding steel, stainless steel, ferrous alloys and copper....

Optional:

It is possible to add an electrode holder with a 3 m cable in order to weld with electrodes of Ø 1.6 mm to 4 mm.

Reference KIT000514

It is possible to add a TIG torch with a length of 4 m in order to weld in TIG mode using pure Argon shielding gas.







-20%

Buy a welding machine and get 20% off all consumables on the site

By purchasing this product you will earn 0 € thanks to our loyalty program. Your cart will total 0 €.
Last items in stock

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer

Characteristics of TELWIN TECHNOMIG 225 DUAL SYNERGIC | Multi-process welder

Supply voltage (in Volts) 50 / 60 Hz - 230 Volts Fuse (in Amperes) 16 A
MMA power range (in Amperes) 20 - 150 A MIG welding adjustment range (in Amperes) 20 - 220 A
TIG welding adjustment range (in Amperes) 20-150 A Duty cycle at 40°C MMA 150A@30 % and 100 A@60 % -80A@100%
MIG-MAG duty cycle at 40°C 180 A @ 20 %- 100 A @60 % - 80A@100% Installation power (in KW) 2 - 5
Open circuit voltage (in Volts) 78 Possible electrode type Rutile - stainless steel/cast iron - basic
Usable rutile electrode diameter (Ø) for the unit (in mm) From 1.6 to 4 mm Usable Tungsten electrode diameter (Ø) 1 to 2.4 mm
Nature of materials to be TIG welded steel, stainless steel, copper, cast iron, titanium, nickel Welding positions 17 + manual adjustment
Uses steel wire diameter 0.6 to 1 mm Uses stainless steel wire diameter 0.8 - 1 mm
Uses aluminum wire diameter 0.8 to 1 mm Uses flux-cored wire (gasless) diameter 0.6 to 1.2 mm
Uses CuSi3 - CuAL (Brazing) wire diameter 0.8 - 1 mm Ventilated Yes
Overvoltage thermostatic protection Yes +/- 15 % Nature of materials to be MMA welded Steel - Stainless steel - Cast iron
Generator compatible yes +/- 15% voltage variation Equipment Supplied with a MIG torch and a ground clamp (3m)
Welding process MMA - MIG - TIG Warranty 2 years
Dimensions (in mm) 795 X 375 XH 730 Weight in kg 30
Number of drive rolls 2 rollers Protection rating IP23
Product for rental 1 Usage Professional
Uses spools of diameter Ø200 and 300mm Synergy Yes
Accessories for TELWIN TECHNOMIG 225 DUAL SYNERGIC | Multi-process welder

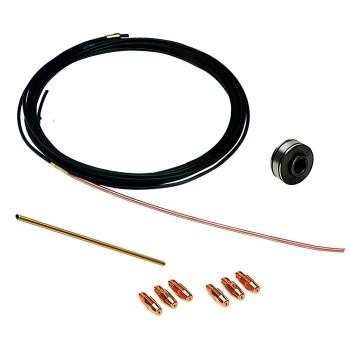

Aluminium Welding Kit for Telwin Machine

1,096.26 kr

Aluminium Welding Kit for Telwin Machine

Reference: 802817

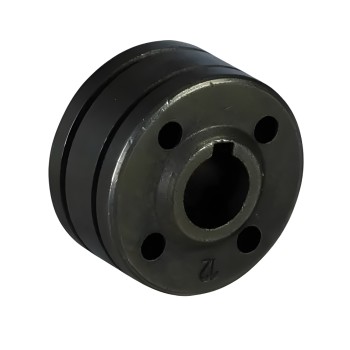

Telwin drive roller for MIG steel welding wire Ø 1- 1.2 mm

178.90 kr

Telwin drive roller for MIG steel welding wire Ø 1- 1.2 mm

Reference: 742054

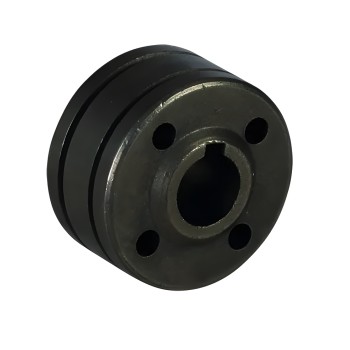

Telwin drive roller for MIG steel wire Ø 0.6 - 0.8 mm

114.93 kr

Telwin drive roller for MIG steel wire Ø 0.6 - 0.8 mm

Reference: 742575
Telwin drive roller for aluminium MIG welding wire Ø 0.8-1 mm

230.27 kr

Telwin drive roller for aluminium MIG welding wire Ø 0.8-1 mm

Reference: 742090
Telwin drive roller for flux-cored steel MIG welding wire Ø 0.8 - 1.2 mm

276.38 kr

Telwin drive roller for flux-cored steel MIG welding wire Ø 0.8 - 1.2 mm

Reference: 722130

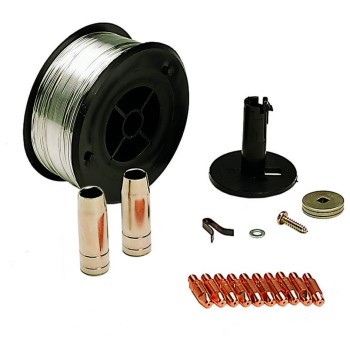

Stainless steel kit for welding spool Ø 100 mm Telwin unit

689.99 kr

Stainless steel kit for welding spool Ø 100 mm Telwin unit

Reference: 802037
Adapter for wire spool Ø 100 mm TELWIN

206.32 kr

Adapter for wire spool Ø 100 mm TELWIN

Reference: 990703
GYS Torch Kit for TIG LIFT welding SR17V - 35/50 - 13mm

1,384.69 kr

GYS Torch Kit for TIG LIFT welding SR17V - 35/50 - 13mm

Reference: 044401

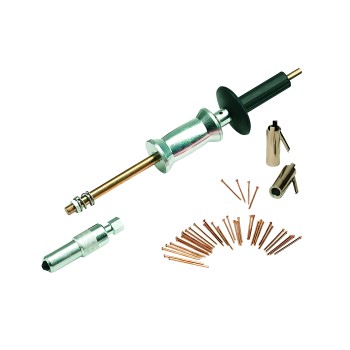

Telwin Stud Welding Kit

2,250.12 kr

Telwin Stud Welding Kit

Reference: 802034

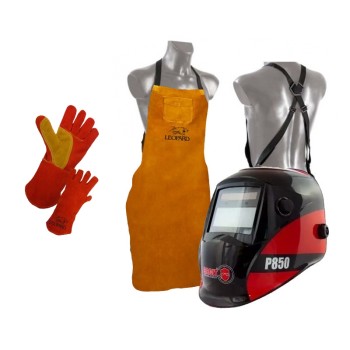

PACK-P850

1,163.69 kr

PACK-P850

Reference: PACK-P850
1 spot welding nozzle Ø 16 for 150 A torch

77.27 kr

1 spot welding nozzle Ø 16 for 150 A torch

Reference: MC0020
10 contact tips for steel or stainless steel wire M6 thread - Length 25 mm

103.02 kr

10 contact tips for steel or stainless steel wire M6 thread - Length 25 mm

Reference: MD0008
10 contact tips for Aluminium wire M6 thread - length 28 mm

103.02 kr

10 contact tips for Aluminium wire M6 thread - length 28 mm

Reference: MD0009
2 gas nozzles diameter 12 mm Trafimet

70.34 kr

2 gas nozzles diameter 12 mm Trafimet

Reference: MC0018
Teflon Liner for aluminium wire

339.66 kr

Teflon Liner for aluminium wire

Reference: GM07
Telwin quick connector

115.34 kr

Telwin quick connector

Reference: 804208
250 A ground clamp + 25 mm² cable - 13 mm connector

492.67 kr

250 A ground clamp + 25 mm² cable - 13 mm connector

Reference: KIT-251/259

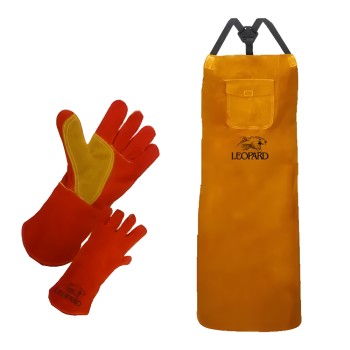

Apron and Glove Pack
